Space Shuttle Ultra 1.25 Revision B development

[DaveS]

Do you use TortoiseSVN?

Yes.



[Urwumpe]

Yes.

Then just use the right mouse button and select "Branch/Tag" in the "TortoiseSVN" Menu for the whole SSU repository.

Then enter the path and name of the branch (its just a folder on the repository in the "branches" directory)



[DaveS]

Then just use the right mouse button and select "Branch/Tag" in the "TortoiseSVN" Menu for the whole SSU repository.

Then enter the path and name of the branch (its just a folder on the repository in the "branches" directory)

Thanks, this is now done.



[Urwumpe]

Thanks, this is now done.

Yes, there is now a second one at the wrong place (correct one: branches/2.1-newmeshes), I'll erase it from the repository, if you don't mind.



[DaveS]

Yes, there is now a second one at the wrong place (correct one: branches/2.1-newmeshes), I'll erase it from the repository, if you don't mind.

Do that as that one was mistake, I forgot to add "branches\" before the "2.1-newmehses" when I created the branch.



[Urwumpe]

Do that as that one was mistake, I forgot to add "branches\" before the "2.1-newmehses" when I created the branch.

Yes, I explained it a bit too short. At least it is done now and the new meshes feature can get done.

Now, I want to put the new hydraulics and ATVC into the 2.1 version.
Also, I want to get the MDMs included.



[DaveS]

Checked in the new meshes/textures into the 2.1-newmeshes branch.

---------- Post added at 01:26 AM ---------- Previous post was at 12:07 AM ----------

I decided to check in the OMS pod meshes as they're done, it's just the texture that is incomplete. So they're usable, they just don't look too good at the moment.



[Donamy]

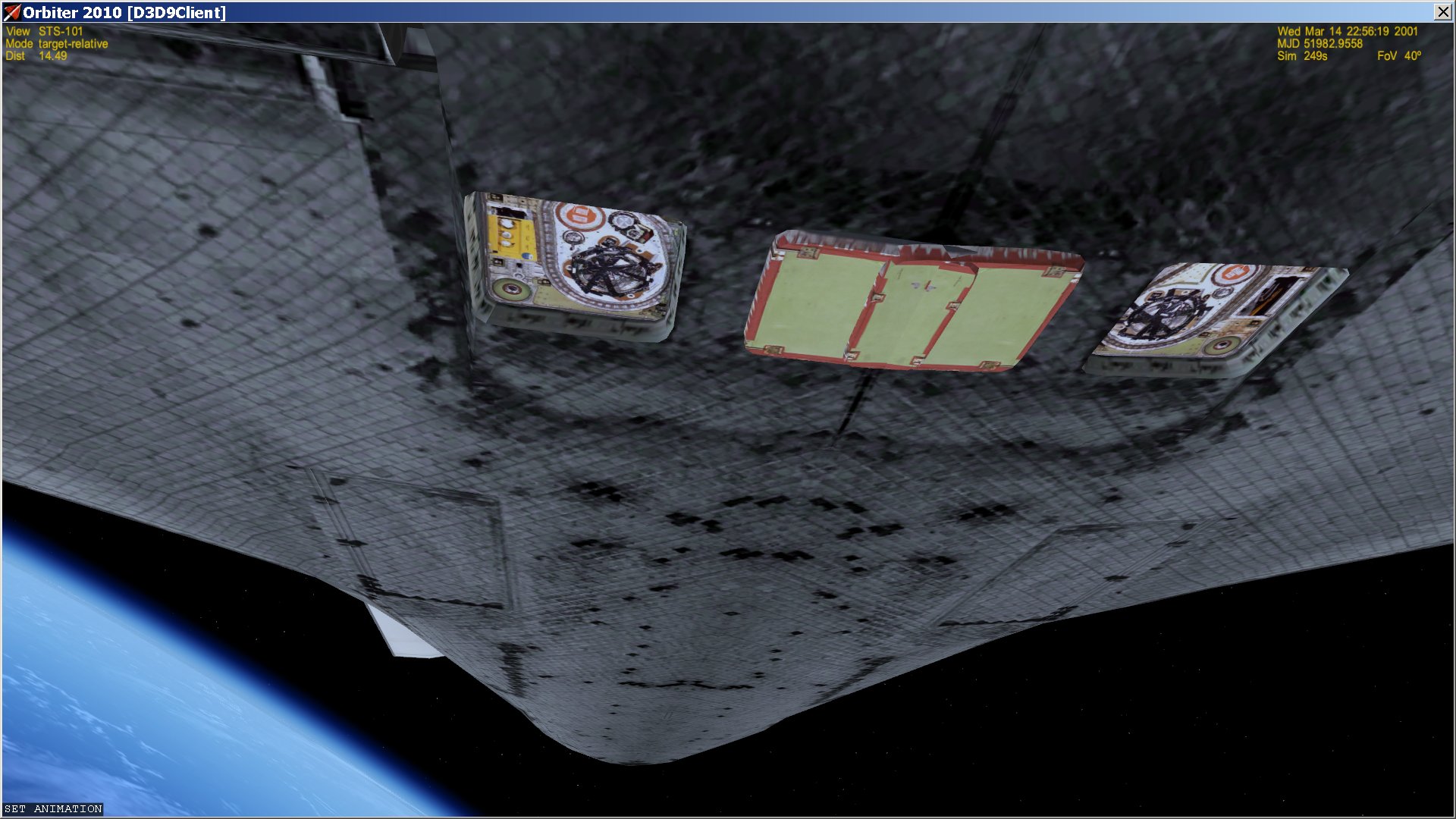

One item found.



[DaveS]

One item found.

Confirmed and added as an official ticket item.



[Donamy]

item 2 dataprobes rotate in the wrong direction.



[DaveS]

item 2 dataprobes rotate in the wrong direction.

This is something I cannot confirm. They rotate correctly for me.



[Donamy]

When looking from above the port side should rotate CW.

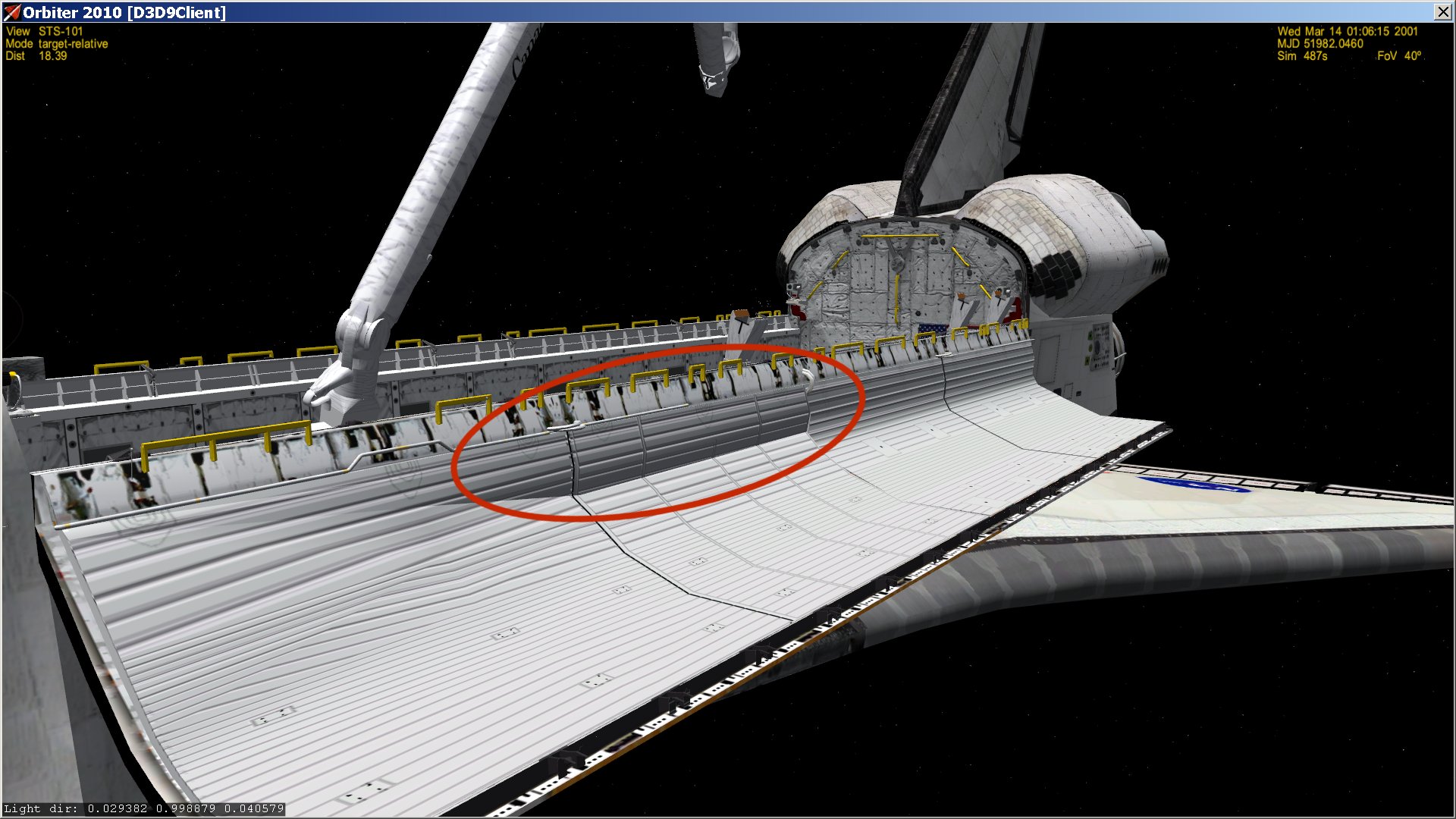

Also, item 3



[DaveS]

When looking from above the port side should rotate CW.

It is for me when deploying. This is as seen from above with the nose pointing up.

Also, item 3

Mesh problem, there's tons of them. Pay them no mind as we're going with new meshes in v2.1.



[Donamy]

That is wrong for the probe rotation.



[Donamy]

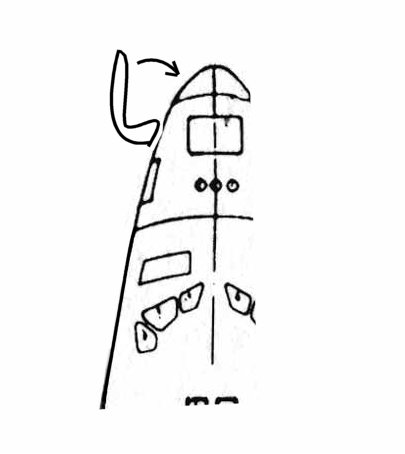

I believe this is how it should be to stow.



[Urwumpe]

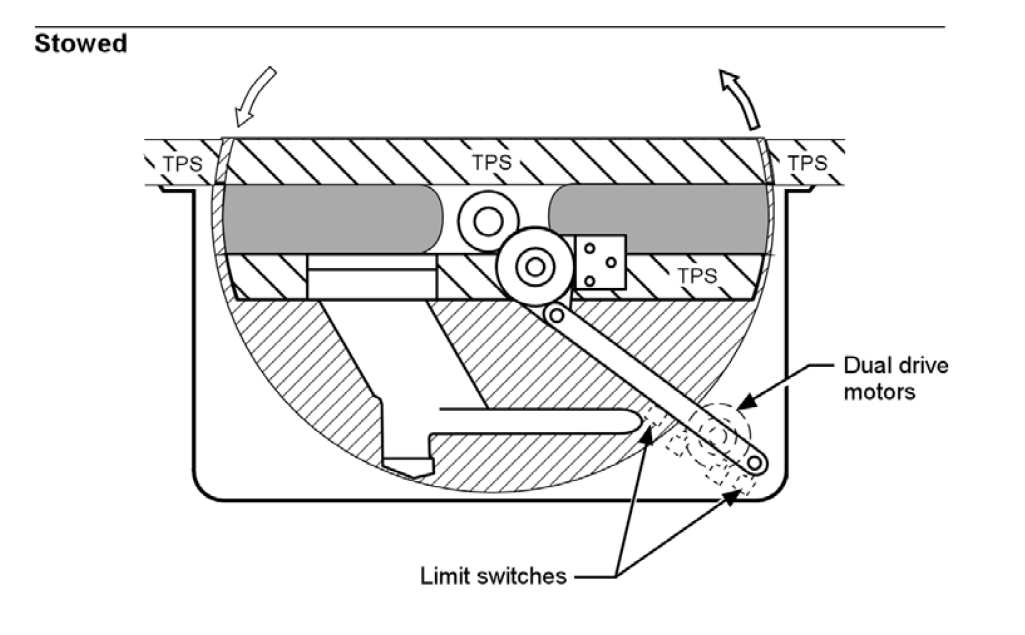

According to the Air Data Workbook, it is like that, which is also supporting Donamys drawing:



[SiameseCat]

Checked in the new meshes/textures into the 2.1-newmeshes branch.

---------- Post added at 01:26 AM ---------- Previous post was at 12:07 AM ----------

I decided to check in the OMS pod meshes as they're done, it's just the texture that is incomplete. So they're usable, they just don't look too good at the moment.

I can't open the Orbiter mesh in MeshWizard; I get "Run-time error 9: Subscript out of range". For some reason, MeshWizard doesn't seem to like the FUSELAGE and LOX_UMBILICAL_PANEL groups; I'm not sure if this is a problem with MeshWizard or with the new mesh.

---------- Post added at 11:42 AM ---------- Previous post was at 11:25 AM ----------

Also, is there a reason why there are 2 groups labeled LEFT_PLBD_EXT? This isn't a problem for coding, but it seems a bit odd.



[DaveS]

I can't open the Orbiter mesh in MeshWizard; I get "Run-time error 9: Subscript out of range". For some reason, MeshWizard doesn't seem to like the FUSELAGE and LOX_UMBILICAL_PANEL groups; I'm not sure if this is a problem with MeshWizard or with the new mesh.

---------- Post added at 11:42 AM ---------- Previous post was at 11:25 AM ----------

Also, is there a reason why there are 2 groups labeled LEFT_PLBD_EXT? This isn't a problem for coding, but it seems a bit odd.

Let me check on these, I'll report back.

---------- Post added at 06:29 PM ---------- Previous post was at 06:02 PM ----------

I checked in a fixed Orbiter.msh, that should open in OMW, I hope. I also took care of that extra LEFT_PLBD_EXT group.

---------- Post added at 07:06 PM ---------- Previous post was at 06:29 PM ----------

I tested the new Orbiter mesh in Orbiter MeshWizard and it loads fine for me now.



[SiameseCat]

The new mesh works for me too.

---------- Post added at 07:18 PM ---------- Previous post was at 04:18 PM ----------

The Ku_band_DA mesh also has 2 groups named Gimbal_lock_structure and 2 groups named Dish_receiver_supports. Again, this can be handled in code easily if you don't want to modify the mesh.



[DaveS]

The new mesh works for me too.

---------- Post added at 07:18 PM ---------- Previous post was at 04:18 PM ----------

The Ku_band_DA mesh also has 2 groups named Gimbal_lock_structure and 2 groups named Dish_receiver_supports. Again, this can be handled in code easily if you don't want to modify the mesh.

I'll take a look, it's better to fix it in the source rather than implement some workaround don't you think?
