I guess a eva mesh is needed and then we can go from there.


gattispilot

Addon Developer
Addon Developer
Joined
Oct 17, 2007
Messages
8,636
Reaction score
2,613
Points
203
Location
Dallas, TX
Vulcan-Centaur test 2....
View attachment 23129
The Vulcan towers majestically on Pad 41!
View attachment 23131
View attachment 23132
Fairing separation....
View attachment 23133
ALPACA (without droptanks) fit perfectly inside the fairings
I made 5 duplicates of the original SRB mesh, oriented about 180°, 30°, 150°, 210°, and 330° relative to the original...
However I think somehow I "chopped" a section of each duplicate booster
Here's the .ini and .scn below (requires both Project - CST-100 Starliner and MRO Updated for the Pad 41 complex):
Here is a new SRB


Attachments

  • Vulcancentaur4.zip
    8.6 KB · Views: 4

Gargantua2024

The Desktop Orbinaut
Joined
Oct 14, 2016
Messages
1,050
Reaction score
1,257
Points
128
Location
San Jose Del Monte, Bulacan

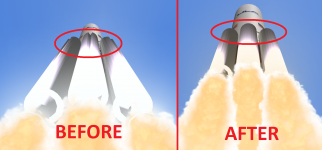

Thanks...that fixed the SRB chopped section issue!2.png

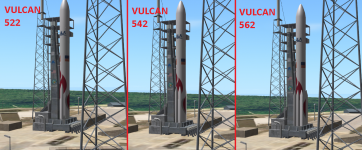

Made three different variants of the Vulcan to test its lifting capability (522, 542 and 562)...all payloads were the droptank-less ALPACA at full tank capacity (16.3 tons)


Attachments

  • Vulcan_ALPACA2.zip
    442.2 KB · Views: 6
Last edited:

gattispilot

Addon Developer
Addon Developer
Joined
Oct 17, 2007
Messages
8,636
Reaction score
2,613
Points
203
Location
Dallas, TX
Great. will the lander fit with the drop tanks?

We get this guy ready for eva. So there are variations in the suits. Some have pockets on the legs, some don't. Some have a more rounded pack some don't. I think the rounded back is more the LER style and not what we are hunting for.

I wonder if we can make a VB eva guy? Use thrusters for movement? Then we can have animations like the side shield, lights,.

If so then I might move the arms like the Ummu are so then we can attach things?

Back packs have the NASA logo and artemis? logo. I guess US flag on top, I can put the flags of the people helping also?


View attachment xemu_infographic-02.jpg


Last edited:

Gargantua2024

The Desktop Orbinaut
Joined
Oct 14, 2016
Messages
1,050
Reaction score
1,257
Points
128
Location
San Jose Del Monte, Bulacan
Great. will the lander fit with the drop tanks?
Haven't tried that idea yet, but ALPACA is only planned to be launched in one piece on an SLS or Starship. Droptanks are going to be separately launched on two Vulcan or Falcon Heavy launches if Dynetics go ahead with not using SLS. But I'd like to find it out


Gargantua2024

The Desktop Orbinaut
Joined
Oct 14, 2016
Messages
1,050
Reaction score
1,257
Points
128
Location
San Jose Del Monte, Bulacan

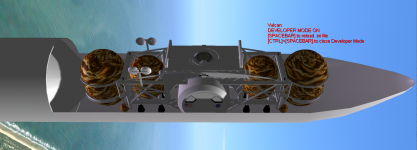

Whoa it fits!2.png
However, it cannot lift the whole lander fully-fueled (39.9 tons) to LEO even in its most powerful configuration (562)....
It did manage to get to LEO when its total mass is 19.44 tons, but in this state, the fuel aboard is only 13.64 tons. As of the latest calculations for the fuel capacity of the main tanks (10.5 tons), this leaves only 3.14 tons worth of fuel inside both droptanks. Sadly it cannot leave LEO unless it is refueled

Here's the alternate .ini file (Vulcan562_ALPACA-2.ini)
Code:
[MISC]
cog=7
FOCUS=1

[TEXTURE_LIST]
TEX_1=Exhaust2
TEX_2=SLS_2016\SSME_Exhaust
TEX_3=SLS_2016\SLS_SRB_contrail
TEX_4=Contrail1

[PARTICLESTREAM_1]
NAME=SRB_contrail
SRCSIZE=1
SRCRATE=12
V0=30
SRCSPREAD=0.05
LIFETIME=0.5
GROWTHRATE=3
ATMSLOWDOWN=0.3
LTYPE=EMISSIVE
LEVELMAP=LVL_PSQRT
LMIN=0
LMAX=1
ATMSMAP=ATM_PLOG
AMIN=1e-6
AMAX=1
TEX=contrail2
GROWFACTOR_RATE=6
GROWFACTOR_SIZE=0.2

[PARTICLESTREAM_2]
NAME=SRB_exhaust
SRCSIZE=1
SRCRATE=12
V0=50
SRCSPREAD=0.05
LIFETIME=15.5
GROWTHRATE=3
ATMSLOWDOWN=0.3
LTYPE=DIFFUSE
LEVELMAP=LVL_PSQRT
LMIN=0
LMAX=1
ATMSMAP=ATM_PLOG
AMIN=1e-6
AMAX=1
Tex=SLS_2016\SLS_SRB_contrail
GROWFACTOR_RATE=6
GROWFACTOR_SIZE=0.2

[PARTICLESTREAM_3]
NAME=Mach
TEX=Contrail
SRCSIZE=2.4
SRCRATE=120
V0=12
SRCSPREAD=0
LIFETIME=0.25
GROWTHRATE=6
ATMSLOWDOWN=0
LTYPE=EMISSIVE
LEVELMAP=LVL_PSQRT
LMIN=0
LMAX=4
ATMSMAP=ATM_PLOG
AMIN=0.7e-7
AMAX=1

[PARTICLESTREAM_4]
NAME=Fume
TEX=Contrail1
SRCSIZE=3
SRCRATE=150
V0=140.0
SRCSPREAD=0.3
LIFETIME=1
GROWTHRATE=15
ATMSLOWDOWN=1.0
LTYPE=DIFFUSE
LEVELMAP=LVL_PSQRT
LMIN=0
LMAX=1
ATMSMAP=ATM_PLOG
AMIN=1e-4
AMAX=2

[FX_MACH]
pstream=Mach
mach_min=1.0
mach_max=1.1
off_1=(0,0,48)
dir=(0,0,-1)

[BOOSTER_1]
N=1
MeshName="VulcanSRB1"
Height=19.224
Diameter=1.55
EmptyMass=5400
FuelMass=48000
Thrust=2026000
angle=180.
off=(0,0,0)
BurnTime=84
eng_1=(0,3.95,-16.2)
eng_diameter=0.75
Eng_tex=Exhaust2
ENG_PSTREAM1=srb_exhaust
ENG_PSTREAM2=srb_contrail
Speed=(0,5,0)
Rot_speed=(0,0,0)

[BOOSTER_2]
N=1
MeshName="VulcanSRB2"
Height=19.224
Diameter=1.55
EmptyMass=5400
FuelMass=48000
Thrust=2026000
angle=180.
off=(0,0,0)
BurnTime=84
eng_1=(0,-3.95,-16.2)
eng_diameter=0.75
Eng_tex=Exhaust2
ENG_PSTREAM1=srb_exhaust
ENG_PSTREAM2=srb_contrail
Speed=(0,-5,0)
Rot_speed=(0,0,0)

[BOOSTER_3]
N=1
MeshName="VulcanSRB3"
Height=19.224
Diameter=1.55
EmptyMass=5400
FuelMass=48000
Thrust=2026000
angle=180.
off=(0,0,0)
BurnTime=84
eng_1=(-1.95,3.45,-16.2)
eng_diameter=0.75
Eng_tex=Exhaust2
ENG_PSTREAM1=srb_exhaust
ENG_PSTREAM2=srb_contrail
Speed=(-3,3,0)
Rot_speed=(0,0,0)

[BOOSTER_4]
N=1
MeshName="VulcanSRB4"
Height=19.224
Diameter=1.55
EmptyMass=5400
FuelMass=48000
Thrust=2026000
angle=180.
off=(0,0,0)
BurnTime=84
eng_1=(-1.95,-3.45,-16.2)
eng_diameter=0.75
Eng_tex=Exhaust2
ENG_PSTREAM1=srb_exhaust
ENG_PSTREAM2=srb_contrail
Speed=(-3,-3,0)
Rot_speed=(0,0,0)

[BOOSTER_5]
N=1
MeshName="VulcanSRB5"
Height=19.224
Diameter=1.55
EmptyMass=5400
FuelMass=48000
Thrust=2026000
angle=180.
off=(0,0,0)
BurnTime=84
eng_1=(1.95,-3.45,-16.2)
eng_diameter=0.75
Eng_tex=Exhaust2
ENG_PSTREAM1=srb_exhaust
ENG_PSTREAM2=srb_contrail
Speed=(3,-3,0)
Rot_speed=(0,0,0)

[BOOSTER_6]
N=1
MeshName="VulcanSRB6"
Height=19.224
Diameter=1.55
EmptyMass=5400
FuelMass=48000
Thrust=2026000
angle=180.
off=(0,0,0)
BurnTime=84
eng_1=(1.95,3.45,-16.2)
eng_diameter=0.75
Eng_tex=Exhaust2
ENG_PSTREAM1=srb_exhaust
ENG_PSTREAM2=srb_contrail
Speed=(3,3,0)
Rot_speed=(0,0,0)

[STAGE_1]
Height=33.3
Diameter=5.4
EmptyMass=30000
FuelMass=368000
Thrust=4800000
BurnTime=240
off=(0,0,0)
speed=(0,0,-5)
ENG_1=(1.35,0,-16.55)
ENG_2=(-1.35,0,-16.55)
ENG_DIAMETER=1
MeshName="VulcanBooster"
Eng_pstream1=Fume
PITCHTHRUST=362000
YAWTHRUST=362000
ROLLTHRUST=36200
ROT_SPEED=0

[SEPARATION_12]
MeshName=VulcanInterstage
Diameter=5.400
Height=2.900
EmptyMass=2000.000
off=(0.000,0.000,0.000)
SPEED=(0.000,0.000,-1.000)
ROT_SPEED=(0.000,0.000,0.000)
Separation_delay=0.000
Module=Stage

[STAGE_2]
Height=11.700
Diameter=5.400
EmptyMass=1914.000
FuelMass=54432.000
Thrust=212000.000
BurnTime=800.000
off=(0.000,0.000,0.000)
MeshName=VulcanCentaur
ENG_1=(0.000,1.100,18.750)
ENG_2=(0.000,-1.100,18.750)
ENG_DIAMETER=1.000
Eng_tex=SLS_2016\SSME_Exhaust
IGNITE_DELAY=10.000
PITCHTHRUST=17291.700
YAWTHRUST=17291.700
ROLLTHRUST=17291.700
Reignitable=1
Eng_pstream1=
Eng_pstream2=
Eng_dir=(0.000,0.000,1.000)
Module=Stage
Speed=(0.000,0.000,0.000)
Rot_speed=(0.000,0.000,0.000)

[FAIRING]
N=2
MeshName="VulcanFairing"
Diameter=5.4
Height=23.4
off=(0,0,0)
Speed=(0,7.5,0)
EMPTYMASS=4650

[PAYLOAD_1]
MeshName=dyneticstest2
off=(0.000,0.000,38.550)
Diameter=5.000
Height=8.000
MASS=19440.000
Module=VesselBuilder1\Dyneticstest
Name=ALPACA
SPEED=(0.000,0.000,2.000)
RENDER=1
Rotation=(0.000,90.000,0.000)
Rot_speed=(0.000,0.000,0.000)
Live=1
...and the alternate scenario:
Code:
BEGIN_DESC
ALPACA with droptanks on a Vulcan-Centaur (562)
END_DESC

BEGIN_ENVIRONMENT
  System Sol
  Date MJD 60419.790625
END_ENVIRONMENT

BEGIN_FOCUS
  Ship Vulcan
END_FOCUS

BEGIN_CAMERA
  TARGET Vulcan
  MODE Extern
  POS 5.410000 155.510000 39.690000
  TRACKMODE Ground Earth
  GROUNDLOCATION -80.58248 28.58208 28.60
  FOV 40.00
END_CAMERA

BEGIN_HUD
  TYPE Surface
END_HUD

BEGIN_MFD Left
  TYPE Surface
  SPDMODE 1
END_MFD

BEGIN_MFD Right
  TYPE Orbit
  PROJ Ship
  FRAME Equator
  ALT
  REF Earth
END_MFD

BEGIN_SHIPS
Vulcan:Multistage2015
  STATUS Landed Earth
  POS -80.5828310 28.5834560
  HEADING 190
  FUEL 1.000
  CONFIG_FILE Config\Multistage2015\Vulcan562_ALPACA-2.ini
  GUIDANCE_FILE Config\Multistage2015\Guidance\Vulcan562.txt
  MET -3.000
  GNC_RUN 0
  CONFIGURATION 0
  CURRENT_BOOSTER 1
  CURRENT_STAGE 1
  CURRENT_PAYLOAD 1
  FAIRING 1
END
ALPACA:VesselBuilder1\Dyneticstest
  STATUS Landed Earth
  POS 0.0000000 0.0000000
  HEADING 0.00
  ALT 0.000
  AROT 0.000 -0.000 0.000
  AFCMODE 7
  PRPLEVEL 0:0.400000
  ATTACHED 0:0,Vulcan
  NAVFREQ 0 0
  ANIM_0 1.00000 0
  ANIM_1 0.00000 0
  ANIM_2 0.00000 0
  ANIM_3 1.00000 0
  ANIM_4 1.00000 0
  ANIM_5 1.00000 0
END
array:VesselBuilder1\DYNETICSARRAY
  SOLP 0 0.0000 3 0.0000
  PANELEXT 1 1.0000
  STATUS Landed Earth
  POS 0.0000000 0.0000000
  HEADING 0.00
  ALT 0.000
  AROT 0.000 -0.000 0.000
  ATTACHED 0:0,ALPACA
  AFCMODE 7
  NAVFREQ 0 0
  XPDR 468
END
LC41_crewtower:Vessels/B_SLC41/b_slc41_crewtower
  STATUS Landed Earth
  POS -80.5829310 28.5835960
  HEADING 10.00
END
LC41:Vessels/B_SLC41/b_slc41
  STATUS Landed Earth
  POS -80.5828310 28.5834560
  HEADING 180.00
  PRPLEVEL 0:1.000
  THLEVEL 0:1.000 3:1.000
  NAVFREQ 0 0
  UMB 0 0.0000
END
END_SHIPS

Last edited:

gattispilot

Addon Developer
Addon Developer
Joined
Oct 17, 2007
Messages
8,636
Reaction score
2,613
Points
203
Location
Dallas, TX
I made an eva guy mesh. and put him on the ground. But a few minutes he begins to spin around.

I don't think we can go that route?


Attachments

  • testeva1.zip
    633.8 KB · Views: 6

Gargantua2024

The Desktop Orbinaut
Joined
Oct 14, 2016
Messages
1,050
Reaction score
1,257
Points
128
Location
San Jose Del Monte, Bulacan
The developers of AMSO did a very good job of adapting their astronauts moving on the ground. Unlike UMMU, which slides on the ground, AMSO guys jump on the terrain instead, and they can do that without spinning for a long period of time.

Or maybe the coding behind the movement of astronauts on STS-2016 could also work on the lunar surface


gattispilot

Addon Developer
Addon Developer
Joined
Oct 17, 2007
Messages
8,636
Reaction score
2,613
Points
203
Location
Dallas, TX
Yes. I think that is done by moving the mesh up and then down with each step.

Not sure if the code is available.

On the sts 2016 guys. It is done thru attachments/tethers. In space they don't have to climb hills,....

I think Ground Vehicle might be the way to go. make a GV cfg and use the eva mesh. you get movement,.....


barrygolden

Well-known member
Joined
Nov 3, 2009
Messages
936
Reaction score
291
Points
78
Location
North of Houston
Sounds like only 2 astronaut's will make this landing. The AMSO eva guys are the way to go if possible. they walk around fine in 2016 but can fall down when turning to far but do pop back up. I did see these helmets. one for IVA's and the sun shades deployed. They was talk about a unpressurized rover being there delivered by another unmanned lander. Found nothing about Artemis lV.


Attachments

  • Artemis lll mission.jpg
    Artemis lll mission.jpg
    433.1 KB · Views: 10
  • xemu_development_unit_-_0009.jpg
    18.1 KB · Views: 8
  • xemu_development_unit_-_0010.jpg
    11.5 KB · Views: 6
Last edited:

gattispilot

Addon Developer
Addon Developer
Joined
Oct 17, 2007
Messages
8,636
Reaction score
2,613
Points
203
Location
Dallas, TX
Well unless the AMSO share the code, we won't know how they did it.

I have a new an improved version of the lander with the new crew suits, more moveable HGA, beacons, light.

It is up on the goggle drive: https://drive.google.com/drive/folders/1BsGd_CRA5UmClKbiRQk9GpopmibQ-nDY

it uses dyneticstestCREW for cfg, mesh Dynetics2HGA,dyneticsvcrewsolidre and dyneticsvcrewstripered.

controls


gattispilot

Addon Developer
Addon Developer
Joined
Oct 17, 2007
Messages
8,636
Reaction score
2,613
Points
203
Location
Dallas, TX
I made a GV eva guy. May need to tweet settings. He turns too fast.



The scn uses the newest lander . In GV like a car to turn you need to be moving forward.

Not sure if you can attach though


Attachments

  • testeva2.zip
    174.9 KB · Views: 6

gattispilot

Addon Developer
Addon Developer
Joined
Oct 17, 2007
Messages
8,636
Reaction score
2,613
Points
203
Location
Dallas, TX
It is a General Vehicle vessel so just add it in like a vessel. I think in VB you can make an event so the guy might be created but not sure


gattispilot

Addon Developer
Addon Developer
Joined
Oct 17, 2007
Messages
8,636
Reaction score
2,613
Points
203
Location
Dallas, TX
Things I have been working on. New interior for Orion:


And an eva guy.


With this guy we have lights and moveable solar side shield.

He will move like the mmu keys. One thing I need to figure out is the side ways movement. If the heading is 0 no problem. But if not it is not a true sideways movement to the guy. I need to somehow take the heading into effect.

I thought about redoing the guy to make the joint more moveable like the Shuttle guys.


gattispilot

Addon Developer
Addon Developer
Joined
Oct 17, 2007
Messages
8,636
Reaction score
2,613
Points
203
Location
Dallas, TX
I think I got the movement better. Without too much rework. I think I can get the shoulders move and the wrist/hands to move. Maybe the upper body? Like the shuttle guys. Have attachments at their hands.


barrygolden

Well-known member
Joined
Nov 3, 2009
Messages
936
Reaction score
291
Points
78
Location
North of Houston
Both the new Orion guys and your new EVA guy look super. I would think the face shield on EVA guy needs to be darker and maybe a little bend at the waist and you might add the pockets on the legs. the smaller more curved back pack make a good looking way as well


Attachments

  • a eva guy.png
    a eva guy.png
    4.6 MB · Views: 10
Top
