Space Shuttle Ultra development thread

Better to apply that to the texture you have.

Of course I can use them. I am not sure I can implement them instantly, but i can at least make the animations useful then. :)

EDIT: Meshes and textures are on the repository.

Last edited:
How close are we to a good payload handling standard in SSU?

Well, the controls are available in the meshes now... But nothing more from my side.

Urwumpe said:
Well, the controls are available in the meshes now... But nothing more from my side.
Click to expand...
Maybe now that the panel controls are in, this should become a priority?

And would there be any way to make the pad stadium lights operational?

I don't know if this could already be priority, but we really need a standard defined. We can't change the attachment point order often once the first add-ons are released.

Well, thruster type lights should be possible, ideally as part of the FSS module.

Urwumpe,

Code:
Needle 1
Rotation point=1.09,2.02,14.69
Needle 2
Rotation point=1.02,2.02,14.69
Needle 3
Rotation point=1.11,2.1,14.71
Topdial
Rotation point=1.03,2.09,14.71
bottomdial
Rotation point=1.04,1.92,14.66

direction=0,0.278810194863955,-0.960346226753624

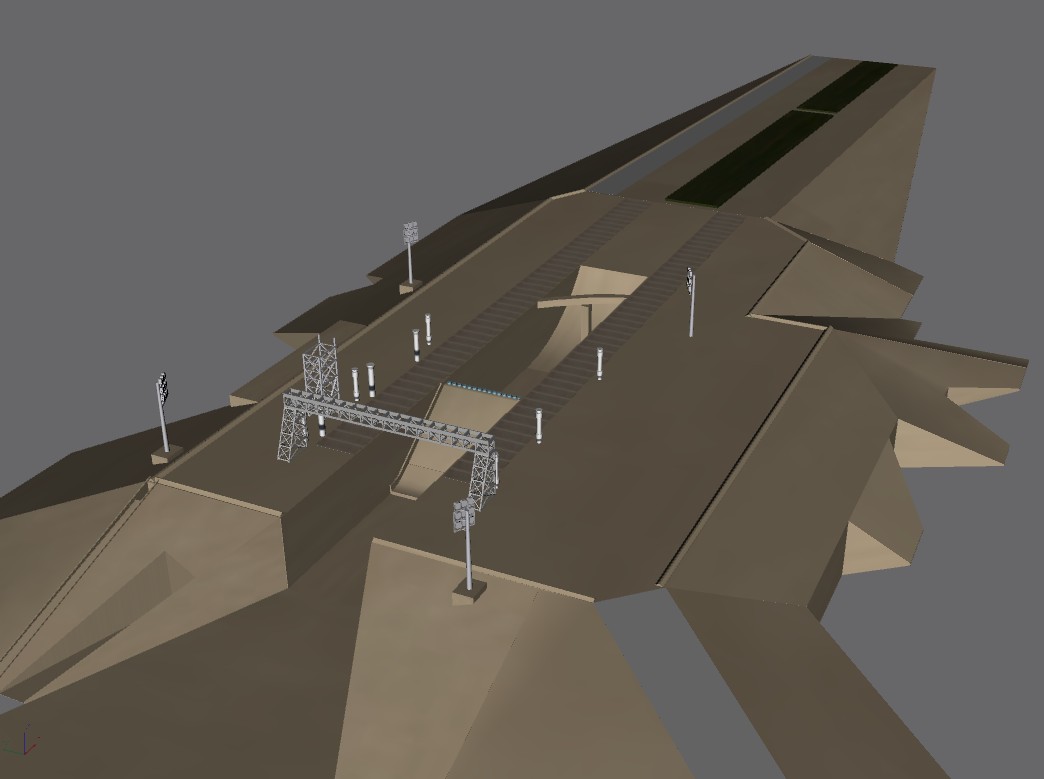

Pad stadium lights and MLP access stand have now been added. Now going to start work on the H2 tower that connectes the pad LH2 and GH2 transfer lines with the ones on the MLP.


Attachments

  • PadA_hardstand_5A.jpg
    44.9 KB · Views: 753
  • PadA_hardstand_5B.jpg
    50.6 KB · Views: 809
  • PadA_hardstand_5C.jpg
    58 KB · Views: 611
Donamy: Attached to this post is final texture map for the hardstand. Could you add some nice textures it? I haven't actually mapped it to the mesh yet, just created the actual texture map.

It has descriptions where each element texture goes in the boxes.


Attachments

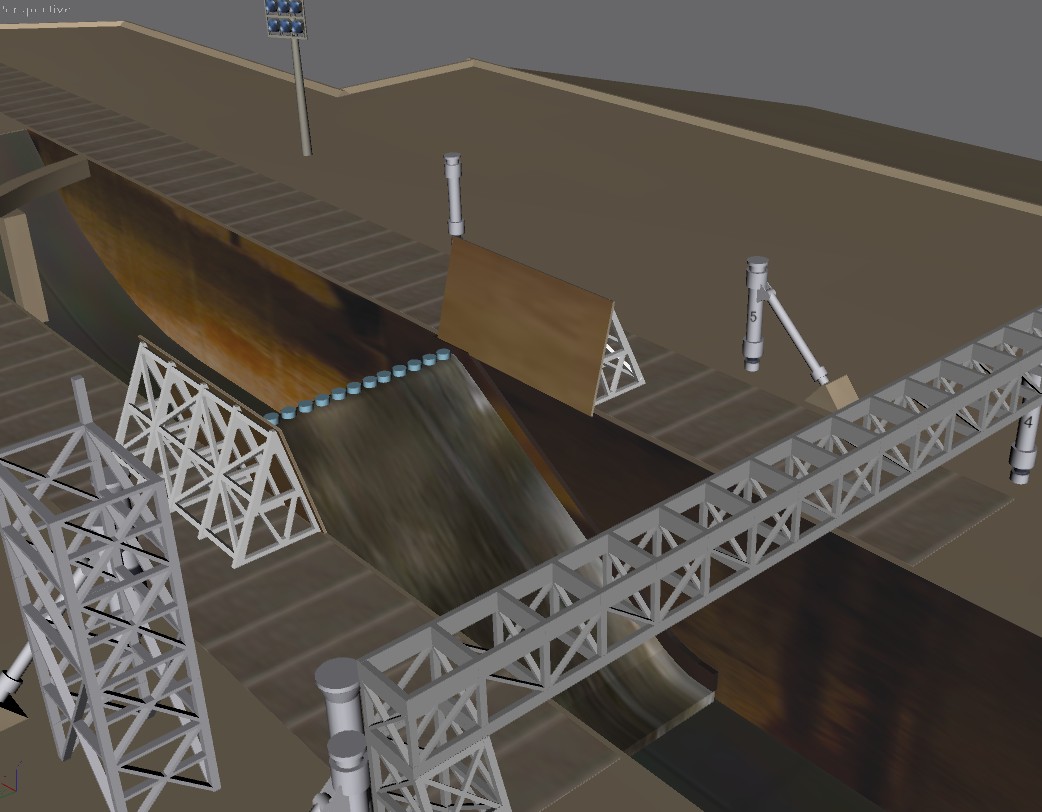

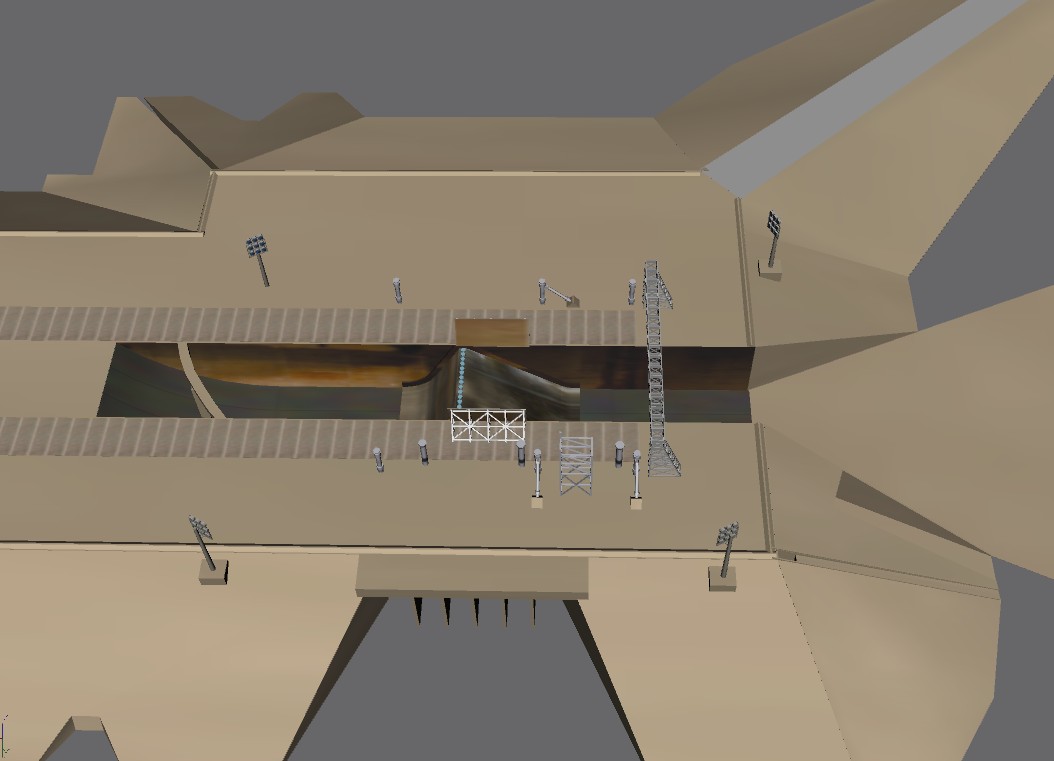

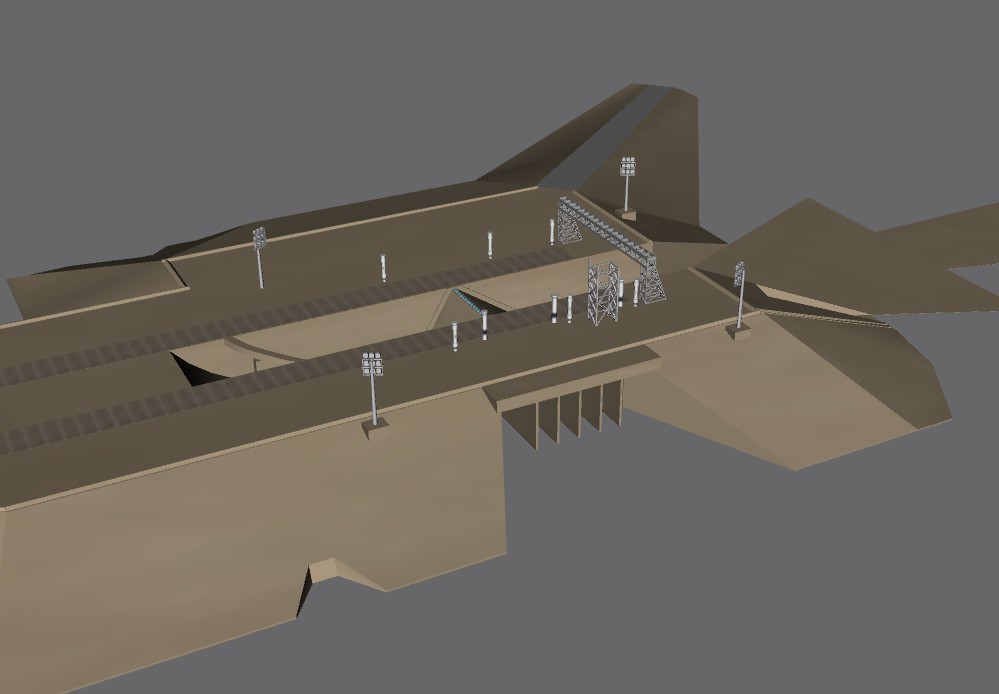

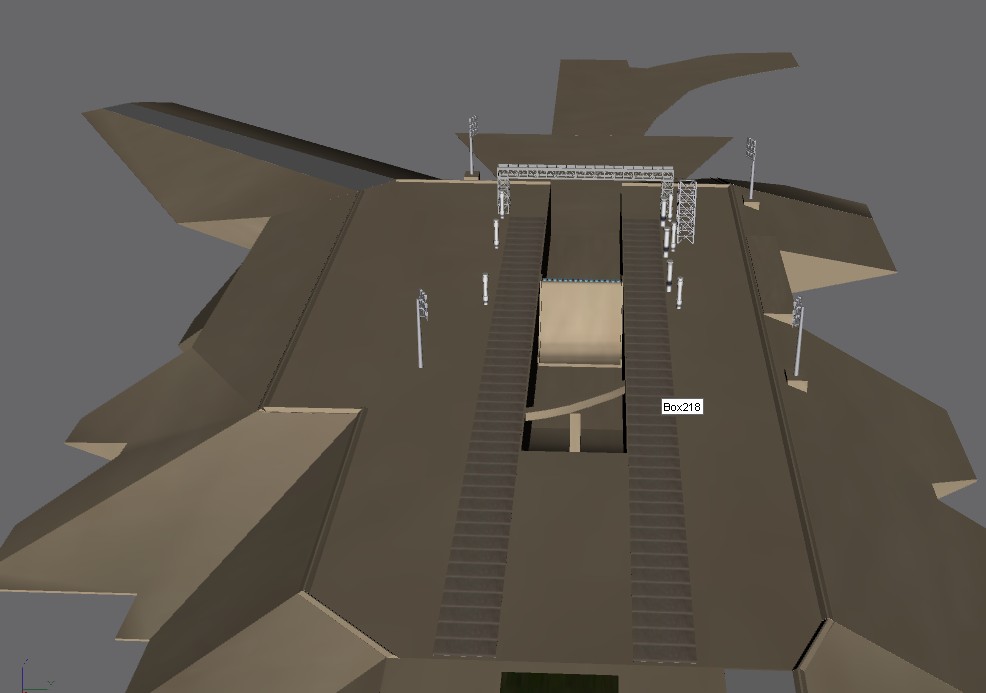

Major changes this time was the application of textures that Donamy made and the addition of the side SRB flame deflectors. I also added the 4 stadium lights.

Hopefully I should have something useable in a few days.


Attachments

  • PadA_hardstand_6A.jpg
    64.1 KB · Views: 551
  • PadA_hardstand_6B.jpg
    131.2 KB · Views: 606
I've updated the Attitude Control code to use the M50 inertial reference frame instead of Orbiter's ref. frame. Hopefully I haven't broken anything :)

I have checked in a first commit version of the hardstand. And this is with textures and an updated Canaveral.cfg file with concrete hardstands at both 39A and 39B. Coordinates is based on default KSC tiles.

Here's two scenarios, one is L-60 minutes of STS-114(39B) and the other is shortly after harddown and departure of the Crawler Transporter following the 1st rollout of STS-117 in February 2007(39A).

Code:
BEGIN_DESC
STS-114, Launch-60 minutes, July 26 2005
END_DESC

BEGIN_ENVIRONMENT
  System Sol
  Date MJD 53577.568750
END_ENVIRONMENT

BEGIN_FOCUS
  Ship Discovery
END_FOCUS

BEGIN_CAMERA
  TARGET Discovery
  MODE Extern
  POS 2.89 13.13 -70.39
  TRACKMODE Ground Earth
  GROUNDLOCATION -80.60409 28.60708 73.51
  GROUNDDIRECTION 91.84 -7.17
  FOV 40.00
END_CAMERA

BEGIN_HUD
  TYPE Surface
END_HUD

BEGIN_MFD Left
  TYPE Surface
  SPDMODE 1
END_MFD

BEGIN_MFD Right
  TYPE Orbit
  PROJ Ship
  FRAME Ecliptic
  REF Earth
END_MFD

BEGIN_SHIPS
Discovery:Atlantis
  STATUS Landed Earth
  POS -80.6238135 28.6184830
  HEADING 0.00
  ATTACHED 0:0,MLP
  PRPLEVEL 0:1.000 1:1.000 2:1.000 3:1.000 4:1.000 5:1.000 6:1.000 7:1.000 8:1.000
  NAVFREQ 0 0
  CONFIGURATION 0
  MET 0.000
  WING_NAME Discovery
  RMS
  ARM_STATUS 0.500000 0.013600 0.014688 0.500000 0.500000 0.500000
  ROLLOUT 0 0.000000
  SHOULDER_BRACE 0.000
  MRL 0.000000 0.000000
  SAT_OFS_X 0.000
  SAT_OFS_Y 0.000
  SAT_OFS_Z 0.000
  OPS 101
  AUTOPILOT 28.500000 80.500000 105000.000000 7156.550000 0.730000
  ASSIST 0.000000 0.000000
  THROTTLE_BUCKET 1399.670000 1670.670000
  HEADS_UP 12966.670
  TGT_ID 2
  BODY_VECT 1
  ROLL 0.000
  PITCH 0.000
  YAW 0.000
  P 0.000
  Y 0.000
  OM -1.000
  GEAR 0 0.0000
  STBD_RMS 1
  CRT_SEL 1 1
  LPROBEARM 1
  LPROBE 2
  RPROBEARM 1
  RPROBE 2
  LOMS 1
  ROMS 1
  AIR_DATA_PROBES 0.000000 0.000000
  BOILERN2SPLY0 0
  BOILERN2SPLY1 0
  BOILERN2SPLY2 0
  BOILERCNTLR0 0
  BOILERCNTLR1 0
  BOILERCNTLR2 0
  BOILERHTR0 0
  BOILERHTR1 0
  BOILERHTR2 0
  APUFUTKVLV0 1
  APUFUTKVLV1 1
  APUFUTKVLV2 1
  APUCNTLRPWR0 1
  APUCNTLRPWR1 1
  APUCNTLRPWR2 1
  HYDCIRCPUMP0 1
  HYDCIRCPUMP1 1
  HYDCIRCPUMP2 1
  APUAUTOSHTDN 0
  APUSPDSEL0 1
  APUSPDSEL1 1
  APUSPDSEL2 1
  APUCNTRL0 1
  APUCNTRL1 1
  APUCNTRL2 1
  HYDMNPMPPRESS0 0
  HYDMNPMPPRESS1 0
  HYDMNPMPPRESS2 0
  MPSENGPWR00 0
  MPSENGPWR01 0
  MPSENGPWR02 0
  MPSENGPWR10 0
  MPSENGPWR11 0
  MPSENGPWR12 0
  HEISOLA0 0
  HEISOLA1 0
  HEISOLA2 0
  HEISOLB0 0
  HEISOLB1 0
  HEISOLB2 0
  APU0 0
  APU1 0
  APU2 0
  HYDRAULIC_PRESS0 0
  HYDRAULIC_PRESS1 0
  HYDRAULIC_PRESS2 0
  FUEL_PRESS0 0
  FUEL_PRESS1 0
  FUEL_PRESS2 0
  MPS0 1
  MPS1 1
  MPS2 1
  L_ET_UMB_DOOR 1.000
  R_ET_UMB_DOOR 1.000
  ET_DOOR_LATCHES 0.000000 1.000000 1.000000
   EVENT_TIMER0 0.000000 DOWN STOPPED
   EVENT_TIMER1 0.000000 DOWN STOPPED
END
MLP:Atlantis_MLP
  STATUS Landed Earth
  POS -80.6238135 28.6184830
  HEADING 0.00
  NAVFREQ 0 0
END
END_SHIPS
BEGIN_ExtMFD
END

Code:
BEGIN_DESC
STS-117, shortly after rollout in February 2007.
END_DESC

BEGIN_ENVIRONMENT
  System Sol
  Date MJD 54146.8776185776
END_ENVIRONMENT

BEGIN_FOCUS
  Ship STS-117
END_FOCUS

BEGIN_CAMERA
  TARGET STS-117
  MODE Extern
  POS 2.89 13.13 -70.39
  TRACKMODE Ground Earth
  GROUNDLOCATION -80.60129 28.60822 35.18
  GROUNDDIRECTION 180.44 0.18
  FOV 15.00
  BEGIN_PRESET
    Ground:STS-117:15.00:Earth -80.60129 28.60822 35.18 3.15 0.00
  END_PRESET
END_CAMERA

BEGIN_HUD
  TYPE Surface
END_HUD

BEGIN_MFD Left
  TYPE Surface
  SPDMODE 1
END_MFD

BEGIN_MFD Right
  TYPE Orbit
  PROJ Ship
  FRAME Ecliptic
  REF Earth
END_MFD

BEGIN_SHIPS
STS-117:Atlantis
  STATUS Landed Earth
  POS -80.6074335 28.6009400
  HEADING 0.00
  ATTACHED 0:0,MLP
  PRPLEVEL 0:1.000 1:1.000 2:1.000 3:1.000 4:1.000 5:1.000 6:1.000 7:1.000 8:1.000
  NAVFREQ 0 0
  CONFIGURATION 0
  MET 0.000
  WING_NAME Atlantis
  RMS
  ARM_STATUS 0.500000 0.013600 0.014688 0.500000 0.500000 0.500000
  ROLLOUT 0 0.000000
  SHOULDER_BRACE 0.000
  MRL 0.000000 0.000000
  SAT_OFS_X 0.000
  SAT_OFS_Y 0.000
  SAT_OFS_Z 0.000
  OPS 101
  AUTOPILOT 28.500000 80.500000 105000.000000 7156.550000 0.730000
  ASSIST 0.000000 0.000000
  THROTTLE_BUCKET 1399.670000 1670.670000
  HEADS_UP 12966.670
  TGT_ID 2
  BODY_VECT 1
  ROLL 0.000
  PITCH 0.000
  YAW 0.000
  P 0.000
  Y 0.000
  OM -1.000
  GEAR 0 0.0000
  STBD_RMS 1
  CRT_SEL 1 1
  LPROBEARM 1
  LPROBE 2
  RPROBEARM 1
  RPROBE 2
  LOMS 1
  ROMS 1
  AIR_DATA_PROBES 0.000000 0.000000
  BOILERN2SPLY0 0
  BOILERN2SPLY1 0
  BOILERN2SPLY2 0
  BOILERCNTLR0 0
  BOILERCNTLR1 0
  BOILERCNTLR2 0
  BOILERHTR0 0
  BOILERHTR1 0
  BOILERHTR2 0
  APUFUTKVLV0 1
  APUFUTKVLV1 1
  APUFUTKVLV2 1
  APUCNTLRPWR0 1
  APUCNTLRPWR1 1
  APUCNTLRPWR2 1
  HYDCIRCPUMP0 1
  HYDCIRCPUMP1 1
  HYDCIRCPUMP2 1
  APUAUTOSHTDN 0
  APUSPDSEL0 1
  APUSPDSEL1 1
  APUSPDSEL2 1
  APUCNTRL0 1
  APUCNTRL1 1
  APUCNTRL2 1
  HYDMNPMPPRESS0 0
  HYDMNPMPPRESS1 0
  HYDMNPMPPRESS2 0
  MPSENGPWR00 0
  MPSENGPWR01 0
  MPSENGPWR02 0
  MPSENGPWR10 0
  MPSENGPWR11 0
  MPSENGPWR12 0
  HEISOLA0 0
  HEISOLA1 0
  HEISOLA2 0
  HEISOLB0 0
  HEISOLB1 0
  HEISOLB2 0
  APU0 0
  APU1 0
  APU2 0
  HYDRAULIC_PRESS0 0
  HYDRAULIC_PRESS1 0
  HYDRAULIC_PRESS2 0
  FUEL_PRESS0 0
  FUEL_PRESS1 0
  FUEL_PRESS2 0
  MPS0 1
  MPS1 1
  MPS2 1
  L_ET_UMB_DOOR 1.000
  R_ET_UMB_DOOR 1.000
  ET_DOOR_LATCHES 0.000000 1.000000 1.000000
   EVENT_TIMER0 0.000000 DOWN STOPPED
   EVENT_TIMER1 0.000000 DOWN STOPPED
END
MLP:Atlantis_MLP
  STATUS Landed Earth
  POS -80.6074335 28.6009400
  HEADING 0.00
  NAVFREQ 0 0
ENDS
BEGIN_ExtMFD
END

Question ? Are the default coordinates correct for the pads? If not, why in the hell would you bother to scale the shuttle down correctly and use the wrong coordinates for launch?:censored:

Donamy said:
Question ? Are the default coordinates correct for the pads? If not, why in the hell would you bother to scale the shuttle down correctly and use the wrong coordinates for launch?:censored:
Click to expand...
Ehh, I'm not seeing how POS in degrees relates to the size of the shuttle in meters.

I lined up the concrete hardstands with their correct locations on the default KSC surface tiles as per Urwumpe's suggestion here:

DaveS said:
I was just wondering: Are we going to use the default KSC tiles or Kukanotas' higher res KSC tiles? I just wonder as it affects the placement of the pad elements.
Click to expand...

Urwumpe said:
I think we go by the default tiles and allow using patched scenarios for the hi-res tiles.

Also I think we should define the context "STSULTRA" for all bases we use.
Click to expand...

Understand now?

donamy: about the lights, look at this photos, thats how the russian cockpit components look like in action. I don't find any shots of the shuttle to compared the docking panels to, but I doubt they made special shuttle versions of the components.

http://www.africaninspace.com/home/gallery/tech/40.shtml

Also, some elements are just push buttons, they don't need to be painted.
