Space Shuttle Ultra 1.25 Revision B development

[SiameseCat]

The OMS assist/ roll to heads up mission file code hasn't been checked in yet.
The ET post-step texture problem should be easy to fix; I suspect creating the ET vessel switches the texture back to the original version.



[DaveS]

Another bug is that the state of the ET umbilical doors isn't loaded.



[GLS]

hey Dave, didn't you ask a while ago for some measurements on the BSMs, on NSF??? Check page 3-20 below....
Hope that helps!:tiphat:



[SiameseCat]

Checked in the code for the A7 camera switches and the OMS Assist/RTHU mission file entries.

The OMS Assist entries are: 'OMSAssistStart' and 'OMSAssistEnd'
The Roll-to-Heads-Up entry is: 'RollToHeadsUpStartVelocity'



[Donamy]

The OMS assist and roll to heads-up works like a charm. Still need the ET to stayed burned at sep though. []

Also, is the Wing_name gone now ?



[SiameseCat]

The WING_NAME parameter is not used anymore; the 'Orbiter' line is used as the name, if 'EnableWingPainting=TRUE' is also in the mission file.



[Donamy]

Ok Thanks !!



[SiameseCat]

Fixed the problem with the ET umbilical door state saving.



[DaveS]

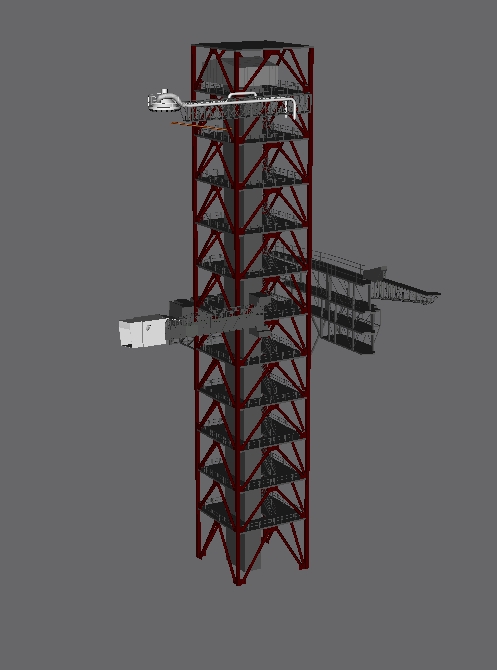

Here's something I have been working on. Try to guess which mission it supported. And I do mean mission, singular.

Hint: The clue is on the GOX Vent Arm. Something on it changed as result of it's failure on this particular mission and this element had to be redesigned prior to the next mission.



[GLS]

STS-1!!!! The thing was leaking all over the place so they redesigned the vent system before STS-2. What's my prize?
So, did the doc above help?



[DaveS]

STS-1!!!! The thing was leaking all over the place so they redesigned the vent system before STS-2. What's my prize?
So, did the doc above help?

Damn, you're good! And you're correct, for some yet unexplained reason the GVA didn't work for any of the STS-1 tankings(LH2 loading test, LOX loading test, FRF, April 10 countdown and April 12 countdown).

So prior to STS-2 the GVA was redesigned with the larger and shorter ducts that it uses today.

Another thing I have added is the hammerhead crane.



[GLS]

I know a few more: the RBUS installed on 39A in the summer of 85 (the platform was installed in 84 I think), and there's also a nitrogen (or helium?) dispersion system?!?!?! Have no idea what it did, but it was on the MLPs, just below the ET, between 91 and 99/00. And also the SSWS mod after STS-1, where they diverted water from the flame trench to the SRB holes, so on STS-1 the pipes on the flame trench were longer than now.



[DaveS]

I know a few more: the RBUS installed on 39A in the summer of 85 (the platform was installed in 84 I think),

Yes, the RBUS platforms still remains but once the Shuttle/Centaur program got the axe, the actual hardware disappeared pretty fast. However, an engineering mockup of the RBUS remained at the Launch Equipment Test Facility up to until a few years ago.

I have never come across any good schematics over the RBUS.



[DaveS]

A CT bug that I thought could stand some looking over: http://www.ibiblio.org/mscorbit/mscforum/index.php?topic=1091.msg10325#msg10325

Elaborations here: http://www.ibiblio.org/mscorbit/mscforum/index.php?topic=1091.msg10344#msg10344



[Urwumpe]

Do we need Meshland and MapObjectsToSphere=false? As far as I understand this, it is caused by the Cape in Apollo being flat, with the crawler moving correctly but the visual of the terrain being off.

How far are you in getting your lost meshes recovered? Any luck in the new year?



[DaveS]

Do we need Meshland and MapObjectsToSphere=false? As far as I understand this, it is caused by the Cape in Apollo being flat, with the crawler moving correctly but the visual of the terrain being off.

No need. SC found a nicer way which do not require any 3rd party add-ons such as MeshLand for the CT pad ascent/descent of the pad ramp to work.

How far are you in getting your lost meshes recovered? Any luck in the new year?

Well, the meshes were completely lost when I tried to install Ubuntu and installed it on the wrong partion of the HDD. So the partion was wiped along with everything on it.



[Donamy]

Fixed the problem with the ET umbilical door state saving.

How should the Scenario read to have the ET umbilicals open ?



[SiameseCat]

How should the Scenario read to have the ET umbilicals open ?

The scenario should have

@SUBSYSTEM ETUmbDoors
  ET_DOORS 1.000000 1.000000
  ET_DOOR_LATCHES 0.000000 1.000000 1.000000
@ENDSUBSYSTEM        ;ETUmbDoors

for the doors to be open.



[Donamy]

Thanks SC !!



[SiameseCat]

A CT bug that I thought could stand some looking over: http://www.ibiblio.org/mscorbit/mscforum/index.php?topic=1091.msg10325#msg10325

Elaborations here: http://www.ibiblio.org/mscorbit/mscforum/index.php?topic=1091.msg10344#msg10344

This should be fixed now; if you can confirm it works I'll PM Tschachim with the fix.
I've also changed the ET code so the burnt texture is retained after ET sep, and I fixed a bug which caused the Air Data Probes to deploy when they weren't supposed to.
