Idea Shuttle Fleet recompile for Orbiter 2016

pappy2

pappy2

Active member
Joined
May 3, 2012
Messages
398
Reaction score
36
Points
43
Thank you "Gattispilot"
I tested the "E" button with Endeavor but the airlock does not open.


gattispilot

gattispilot

Addon Developer
Addon Developer
Joined
Oct 17, 2007
Messages
8,707
Reaction score
2,683
Points
203
Location
Dallas, TX
Regarding the MMU:
Shift + E = Opening the airlock door
E = Appearance of the guy in MMU
E = disappearance of the guy in MMU

gattispilot

gattispilot

Addon Developer
Addon Developer
Joined
Oct 17, 2007
Messages
8,707
Reaction score
2,683
Points
203
Location
Dallas, TX
So redid the cradle:


Yes the rms is broke:( Not grapple things

If you change the cfg for ASEm to this it should be right.
Code:
BEGIN_ATTACHMENT
P .1 .5 0  0 -1 0  0 0 -1 XS ; TO SHUTTLE
P 0 3.335 0  0 1 0  0 0 1 GS ; TO RMS
C 0 -.695 1.145  0 -1 0  0 0 -1 XS ; TO EVA
C 0 -.695 1.145  0 -1 0  0 0 -1 XS ; TO EVA
END_ATTACHMENT

GS is the ID for the rms to attach.

pappy2

pappy2

Active member
Joined
May 3, 2012
Messages
398
Reaction score
36
Points
43
Hello "gattispilot"
the satellite support is very well represented, beautiful work.

Regarding the capture of ASEM I changed the .cfg file
but sorry the capture with the RMS still does not work.




gattispilot

gattispilot

Addon Developer
Addon Developer
Joined
Oct 17, 2007
Messages
8,707
Reaction score
2,683
Points
203
Location
Dallas, TX
Yes. I am not sure why though. It might be because of the set and seq. working on meshes and then going to look at the code.

---------- Post added 06-12-19 at 05:17 AM ---------- Previous post was 06-11-19 at 06:03 AM ----------

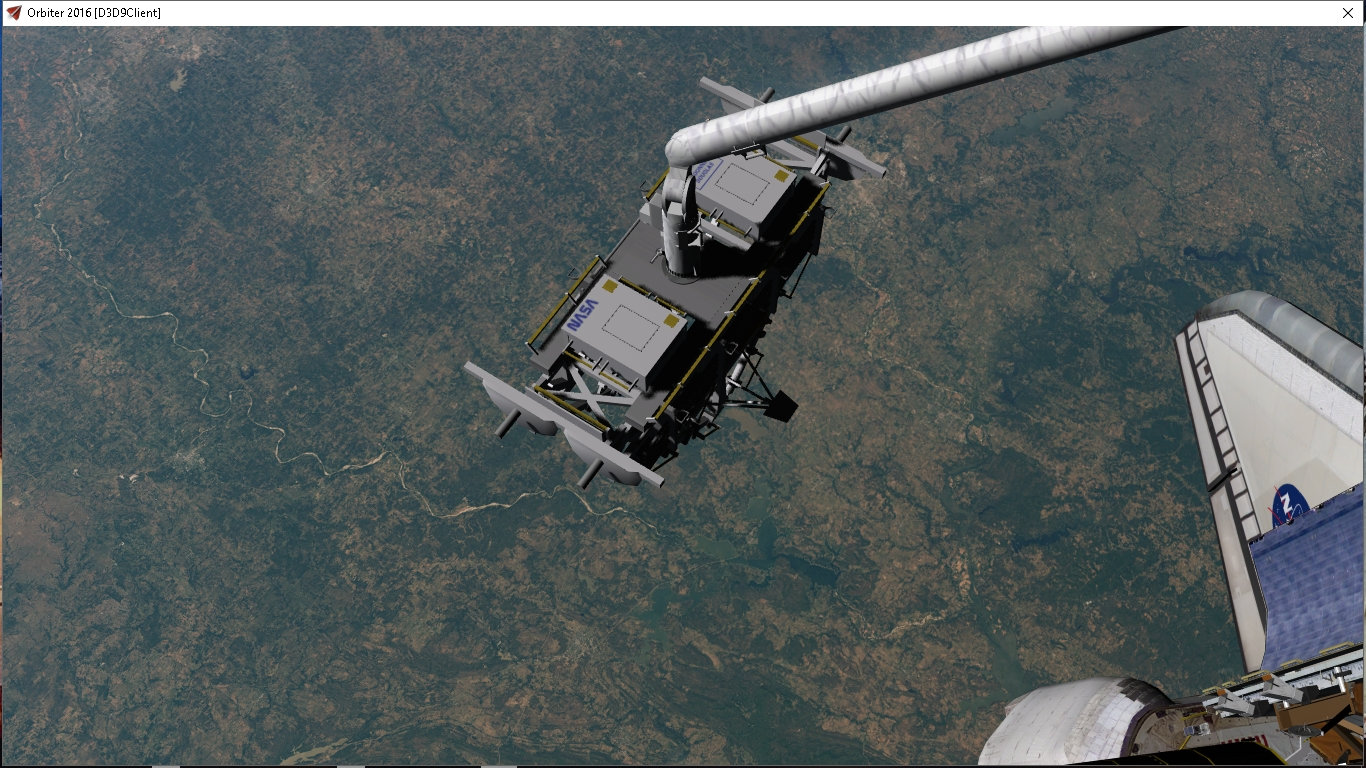

New meshes. Still need to fix rms and get grapple point correct.


here are the new meshes, textures, cfgs.
https://drive.google.com/open?id=1RbrrTrBgEBIy3M-a7vDIBVaTumJCf-iq

---------- Post added at 06:06 AM ---------- Previous post was at 05:17 AM ----------

So stuck on the code part
Code:
void Atlantis::ToggleGrapple(void)
{
	HWND hDlg;
	OBJHANDLE hV = GetAttachmentStatus(rms_attach);

	if (hV) {  // release satellite

		ATTACHMENTHANDLE hAtt = CanArrest();
		DetachChild(rms_attach);
		if (hDlg = oapiFindDialog(g_Param.hDLL, IDD_RMS)) {
			SetWindowText(GetDlgItem(hDlg, IDC_GRAPPLE), "Grapple");
			EnableWindow(GetDlgItem(hDlg, IDC_STOW), TRUE);
		}
		// check whether the object being ungrappled is ready to be clamped into the payload bay
	//	if (hAtt) {
		//	AttachChild(hV, sat_attach, hAtt);
		//	if (hDlg) {
		//		SetWindowText(GetDlgItem(hDlg, IDC_PAYLOAD), "Purge");
		//		EnableWindow(GetDlgItem(hDlg, IDC_PAYLOAD), TRUE);
		//	}
		//}

#ifdef UNDEF
		VECTOR3 pos, dir, rot, gbay, gpos;
		GetAttachmentParams(sat_attach, pos, dir, rot);
		Local2Global(pos, gbay);
		VESSEL *v = oapiGetVesselInterface(hV);
		DWORD nAttach = v->AttachmentCount(true);
		for (DWORD j = 0; j < nAttach; j++) { // now scan all attachment points
			ATTACHMENTHANDLE hAtt = v->GetAttachmentHandle(true, j);
			v->GetAttachmentParams(hAtt, pos, dir, rot);
			v->Local2Global(pos, gpos);
			if (dist(gpos, gbay) < MAX_GRAPPLING_DIST) {
				AttachChild(hV, sat_attach, hAtt);
				return;
			}
		}
#endif

	}
	else {             // grapple satellite

		VECTOR3 gpos, grms, pos, dir, rot;
		Local2Global(arm_tip[0], grms);  // global position of RMS tip

		// Search the complete vessel list for a grappling candidate.
		// Not very scalable ...
		for (DWORD i = 0; i < oapiGetVesselCount(); i++) {
			OBJHANDLE hV = oapiGetVesselByIndex(i);
			if (hV == GetHandle()) continue; // we don't want to grapple ourselves ...
			oapiGetGlobalPos(hV, &gpos);
			if (dist(gpos, grms) < oapiGetSize(hV)) { // in range
				VESSEL *v = oapiGetVesselInterface(hV);
				DWORD nAttach = v->AttachmentCount(true);

				for (DWORD j = 0; j < nAttach; j++) { // now scan all attachment points of the candidate
					ATTACHMENTHANDLE hAtt = v->GetAttachmentHandle(true, j);
					const char *id = v->GetAttachmentId(hAtt);
					//if (strncmp(id, "GS", 2)) continue; // attachment point not compatible
					v->GetAttachmentParams(hAtt, pos, dir, rot);
					v->Local2Global(pos, gpos);
					sprintf(oapiDebugString(), "dist %2.2f  ", dist(gpos, grms));
					if (dist(gpos, grms) < 10) { // found one!
						// check whether satellite is currently clamped into payload bay
						//if (hV == GetAttachmentStatus(sat_attach))
						//	DetachChild(sat_attach);

						AttachChild(hV, rms_attach, hAtt);
						if (hDlg = oapiFindDialog(g_Param.hDLL, IDD_RMS)) {
							SetWindowText(GetDlgItem(hDlg, IDC_GRAPPLE), "Release");
							EnableWindow(GetDlgItem(hDlg, IDC_STOW), FALSE);
						}
						return;
					}
				}
			}
		}

	}
}
I have it set to look at any attachment id. and it should attach if less than 10. So when I press grapple the screen print doesn't show

M

Marg

Active member
Joined
Mar 20, 2008
Messages
483
Reaction score
68
Points
28
Only now I realized that payload bay door\Ku Band stc. operation interface imitates L13 panel.
All this menu system surpasses David's413 Shuttle Fleet. Great job!

Just wanted to note that Endeavour's payload bay doors, when opened, are a bit off the orbiter's wall... (x coord. rotation point slightly off?).

gattispilot

gattispilot

Addon Developer
Addon Developer
Joined
Oct 17, 2007
Messages
8,707
Reaction score
2,683
Points
203
Location
Dallas, TX
Marg said:
Only now I realized that payload bay door\Ku Band stc. operation interface imitates L13 panel.
All this menu system surpasses David's413 Shuttle Fleet. Great job!

Just wanted to note that Endeavour's payload bay doors, when opened, are a bit off the orbiter's wall... (x coord. rotation point slightly off?).
Click to expand...


Thanks. Well I know why it will not attach but I don't know why.



So it looks at the size of the vessel to ASEm was set at 2.0 But it shows the distance at 3.0 So the distance is the value of the y axis.


Code:
for (DWORD i = 0; i < oapiGetVesselCount(); i++) {
            OBJHANDLE hV = oapiGetVesselByIndex(i);
            if (hV == GetHandle()) continue; // we don't want to grapple ourselves ...
            oapiGetGlobalPos(hV, &gpos);
            sprintf(oapiDebugString(), "dist %2.2f size %2.2f ", dist(gpos, grms), oapiGetSize(hV));
            if (dist(gpos, grms) < oapiGetSize(hV)) { // in range
                VESSEL *v = oapiGetVesselInterface(hV);
                DWORD nAttach = v->AttachmentCount(true);

                for (DWORD j = 0; j < nAttach; j++) { // now scan all attachment points of the candidate
                    ATTACHMENTHANDLE hAtt = v->GetAttachmentHandle(true, j);
                    const char *id = v->GetAttachmentId(hAtt);

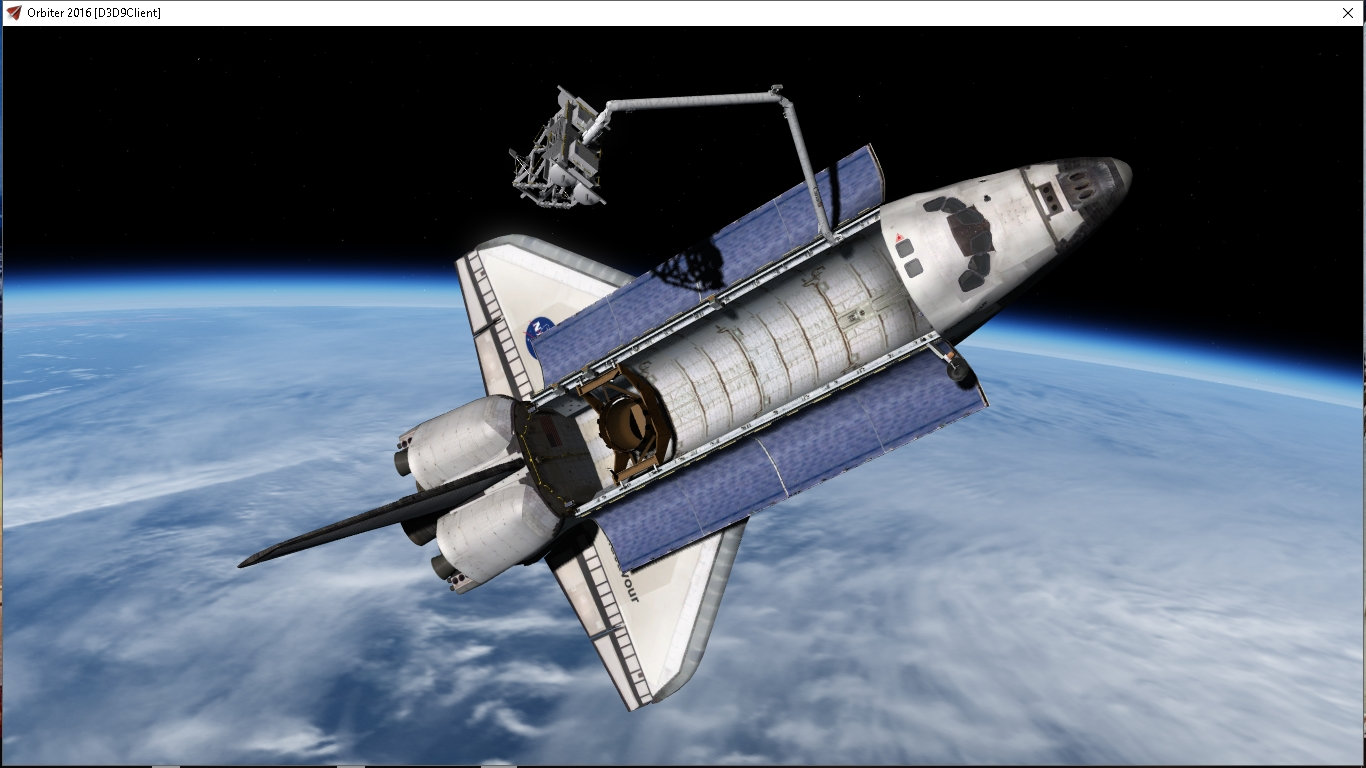

so if you set the cfg to this it seems to work:)

Code:
; === Configuration file for vessel class NASA ASEM ===
ClassName = ASEM
MeshName = 2016SPACESHUTTLE\ASEM2
Mass = 1124
Size = 10


; === Attachment specs ===
BEGIN_ATTACHMENT
P 0 .5 0  0 -1 0  0 0 -1 XS ; TO SHUTTLE
P 0 3.2 0  0 1 0  0 0 1 GS ; TO RMS
C 0 -.695 1.145  0 -1 0  0 0 -1 XS ; TO EVA
C 0 -.695 1.145  0 -1 0  0 0 -1 XS ; TO EVA
END_ATTACHMENT

I wonder if the rms camera needs to be set back. It is set where it would be in the rms. BUT you get clipping so you can't see the target

Last edited:
Gargantua2024

Gargantua2024

The Desktop Orbinaut
Joined
Oct 14, 2016
Messages
1,057
Reaction score
1,268
Points
128
Location
San Jose Del Monte, Bulacan
Tinkered with STS-51-F (Challenger's) launch and ATO

Guidance file:
Code:
-32.2=Playsound(XRSound\Launch\STS-51-F.wav)
-30=orbit(101,312,49.5,-1)
-6=engine(0,100,6)
3=engine(100,104.5,1.00)
30=engine(104.5,72.00,5.00)
55=engine(72.0,104.5,5.00)
124=jettison()
124=jettison()
343=engineout(3)
555=jettison()


Attachments

  • STS-51-F (1).jpg
    STS-51-F (1).jpg
    113.9 KB · Views: 7
  • STS-51-F (2).jpg
    STS-51-F (2).jpg
    41.3 KB · Views: 12
  • STS-51-F (3).jpg
    STS-51-F (3).jpg
    97.2 KB · Views: 8
Last edited:
gattispilot

gattispilot

Addon Developer
Addon Developer
Joined
Oct 17, 2007
Messages
8,707
Reaction score
2,683
Points
203
Location
Dallas, TX
For sts61c some cargo.
Hitchhiker

gas bridge

MSLC

it looks like it justs uses a PAM d2 and regular ase?

eva in sts 49


might need to move the ASEM slightly as it it it hitting an rms support

Last edited:
Star Voyager

Star Voyager

Space Shuttle Refugee
Joined
Oct 25, 2008
Messages
1,975
Reaction score
32
Points
48
Nope, ASE was bigger for D2. The meshes should be in STS Payloads for 61B. Otherwise looks good!

gattispilot

gattispilot

Addon Developer
Addon Developer
Joined
Oct 17, 2007
Messages
8,707
Reaction score
2,683
Points
203
Location
Dallas, TX
One thing I noticed. It may be an orbiter issue. IS when I grappled the cradle bar with rms it was right. I exited and now it is wrong. I will try to put together a sts 61C set up.

I need to make the Orbus a vessel by adding the spin. After 35 minutes it would start to spin to 10 rpm. And make the animation of the Intel say work

So I know there is a Pam d2 but do we have the K! satellite?

Last edited:
gattispilot

gattispilot

Addon Developer
Addon Developer
Joined
Oct 17, 2007
Messages
8,707
Reaction score
2,683
Points
203
Location
Dallas, TX

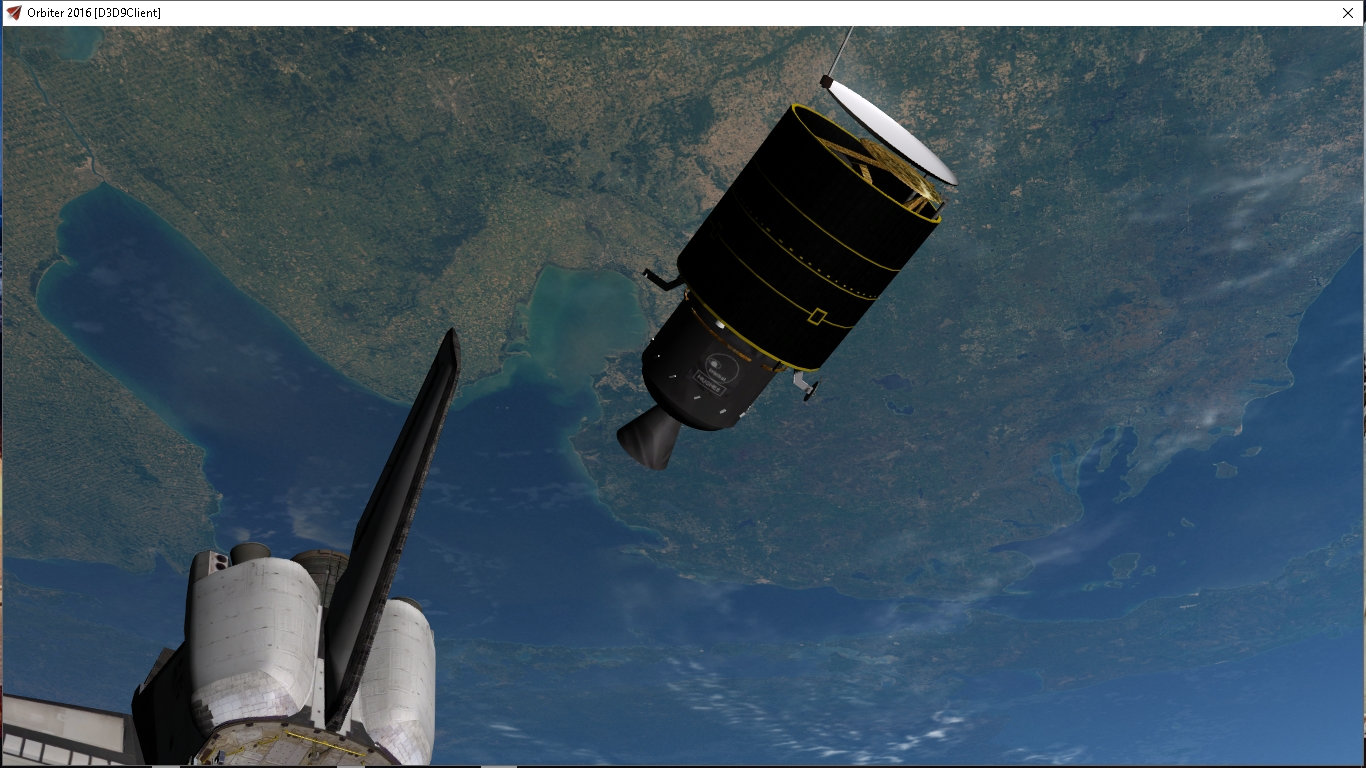

So I got the ASE in and the other stuff. Haven't gotten the pamd2 and satellite.


Changed the texture to sat k1

added pamd2 and k1



Last edited:
S

Sbb1413

Well-known member
Joined
Aug 14, 2018
Messages
948
Reaction score
373
Points
78
Location
India
Preferred Pronouns
he/his/him
Gattispilot, why the OV-102 (Columbia) is glowing at the darkness?

gattispilot

gattispilot

Addon Developer
Addon Developer
Joined
Oct 17, 2007
Messages
8,707
Reaction score
2,683
Points
203
Location
Dallas, TX
Well in regular graphics I had all payload lights on.
here it is no payload lights on:

It seems to be very powerful.
Code:
spotlight1 = (SpotLight*)AddSpotLight(_V(1.6380, -1.3773, 7.2568), _V(0.5, 0.7071, -0.5), 3, 0.5, 0.0, 0.05, (120 * RAD), (10 * RAD), col_d, col_s, col_a);
	spotlight2 = (SpotLight*)AddSpotLight(_V(-1.6380, -1.3773, 7.2568), _V(-0.5, 0.7071, -0.5), 3, 0.5, 0.0, 0.05, (120 * RAD), (10 * RAD), col_d, col_s, col_a);
	spotlight3 = (SpotLight*)AddSpotLight(_V(1.6380, -1.3773, 2.5713), _V(0.7071, 0.7071, 0), 3, 0.5, 0.0, 0.05, (120 * RAD), (10 * RAD), col_d, col_s, col_a);
	spotlight4 = (SpotLight*)AddSpotLight(_V(-1.6380, -1.3773, 2.5713), _V(0.7071, 0.7071, 0), 3, 0.5, 0.0, 0.05, (120 * RAD), (10 * RAD), col_d, col_s, col_a);
	spotlight5 = (SpotLight*)AddSpotLight(_V(1.6380, -1.3773, -2.0453), _V(0.5, 0.7071, 0.5), 3, 0.5, 0.0, 0.05, (120 * RAD), (10 * RAD), col_d, col_s, col_a);
	spotlight6 = (SpotLight*)AddSpotLight(_V(-1.6380, -1.3773, -2.0453), _V(-0.5, 0.7071, 0.5), 3, 0.5, 0.0, 0.05, (120 * RAD), (10 * RAD), col_d, col_s, col_a);
but this raises a d3d9 questions.
this is it in d3d9:

all lights on.
but it appears the same if lights are on/off?


The lights come on as I see beacon but no light effect?


So to try to be a bit more organized I created new folders: STS_PAYLOADSNEW for meshes and textures.
so here is sts49 and sts61c
https://drive.google.com/open?id=1j7zsTj4_9RJe8OSW72e4o70zRyBKF5w3
Not sure on the orbit and shuttle location

Last edited:
kuddel

kuddel

Donator
Donator
Joined
Apr 1, 2008
Messages
2,064
Reaction score
507
Points
113
Regarding D3D9Client and lights:
Did you set the "Local lights" feature in the "D3D9Client Advanced Setup" window to anything else but "None" ?


Attachments

  • Local Lights.png
    Local Lights.png
    84.7 KB · Views: 12
pappy2

pappy2

Active member
Joined
May 3, 2012
Messages
398
Reaction score
36
Points
43
gattispilot said:
so if you set the cfg to this it seems to work:)

Code:
; === Configuration file for vessel class NASA ASEM ===
ClassName = ASEM
MeshName = 2016SPACESHUTTLE\ASEM2
Mass = 1124
Size = 10


; === Attachment specs ===
BEGIN_ATTACHMENT
P 0 .5 0  0 -1 0  0 0 -1 XS ; TO SHUTTLE
P 0 3.2 0  0 1 0  0 0 1 GS ; TO RMS
C 0 -.695 1.145  0 -1 0  0 0 -1 XS ; TO EVA
C 0 -.695 1.145  0 -1 0  0 0 -1 XS ; TO EVA
END_ATTACHMENT

I wonder if the rms camera needs to be set back. It is set where it would be in the rms. BUT you get clipping so you can't see the target
Click to expand...


Hello "gattispilot"
About STS-49
For me the capture of ASEM is working now.





The textures of CRADLE and cradlebar are great.





Have you planned the keys for the ignition and separation of the satellite?

Once again, very nice work !! :tiphat:

CONGRATULATIONS :hailprobe:

---------- Post added at 02:47 PM ---------- Previous post was at 02:21 PM ----------
gattispilot said:
So to try to be a bit more organized I created new folders: STS_PAYLOADSNEW for meshes and textures.
so here is sts49 and sts61c
https://drive.google.com/open?id=1j7zsTj4_9RJe8OSW72e4o70zRyBKF5w3
Not sure on the orbit and shuttle location
Click to expand...

Hello "gattispilot"

Regarding the .zip file of STS-49 and STS-61C
I have for each scenario a CTD for STS49LAUNCH OF INTELSAT6:
missing "ORBUS"

Code:
**** Orbiter.log
000000.000: Build Aug 28 2016 [v.160828]
000000.000: Timer precision: 6.41633e-007 sec
000000.000: Found 0 joystick(s)
000000.000: Module AtlantisConfig.dll .... [Build 160828, API 160828]
000000.000: Module AtmConfig.dll ......... [Build 160828, API 160828]
000000.000: Module DGConfigurator.dll .... [Build 160828, API 160828]
000000.000: ---------------------------------------------------------------
BaseDir    : C:\ORBITER 2016\ORBITER 2016 THD\
ConfigDir  : C:\ORBITER 2016\ORBITER 2016 THD\Config\
MeshDir    : C:\ORBITER 2016\ORBITER 2016 THD\Meshes\
TextureDir : C:\ORBITER 2016\ORBITER 2016 THD\Textures\
HightexDir : C:\ORBITER 2016\ORBITER 2016 THD\Textures2\
ScenarioDir: C:\ORBITER 2016\ORBITER 2016 THD\Scenarios\
000000.000: ---------------------------------------------------------------
000000.000: Module D3D9Client.dll ........ [Build 190225, API 160828]
============================ ERROR: ===========================
Failed loading module Modules\Plugin\CamShake.dll (code 126)
[Orbiter::LoadModule | .\Orbiter.cpp | 600]
===============================================================
============================ ERROR: ===========================
Failed loading module Modules\Plugin\InterMFD56.dll (code 126)
[Orbiter::LoadModule | .\Orbiter.cpp | 600]
===============================================================
000000.000: Module LunarTransferMFD.dll .. [Build 160829, API 160815]
============================ ERROR: ===========================
Failed loading module Modules\Plugin\Map3DMFD.dll (code 126)
[Orbiter::LoadModule | .\Orbiter.cpp | 600]
===============================================================
============================ ERROR: ===========================
Failed loading module Modules\Plugin\ReFuelMFD.dll (code 126)
[Orbiter::LoadModule | .\Orbiter.cpp | 600]
===============================================================
000000.000: Module ScriptMFD.dll ......... [Build 160828, API 160828]
000000.000: Module Multistage2015_MFD.dll  [Build 170626, API 160828]
000000.000: Module InterMFD57.dll ........ [Build 161216, API 160910]
000000.000: ---------------------------------------------------------------
000000.000: >>> WARNING: Obsolete API function used: oapiRegisterMFDMode
000000.000: At least one active module is accessing an obsolete interface function.
000000.000: Addons which rely on obsolete functions may not be compatible with
000000.000: future versions of Orbiter.
000000.000: ---------------------------------------------------------------
000000.000: Module Meshdebug.dll ......... [Build 160828, API 160828]
000000.000: Module LuaMFD.dll ............ [Build 160828, API 160828]
000000.000: Module transx.dll ............ [Build 160216, API 160214]
000000.000: Module CustomMFD.dll ......... [Build 160828, API 160828]
000000.000: Module AttitudeMFD.dll ....... [Build ******, API 060425]
000000.000: Module HUDdataMFD.dll ........ [Build ******, API 060425]
000000.000: Module LuaConsole.dll ........ [Build 160828, API 160828]
000000.000: Module ExtMFD.dll ............ [Build 160828, API 160828]
============================ ERROR: ===========================
Failed loading module Modules\Plugin\DX9ExtMFD.dll (code 126)
[Orbiter::LoadModule | .\Orbiter.cpp | 600]
===============================================================
000000.000: Module FlightData.dll ........ [Build 160828, API 160828]
000000.000: Module Framerate.dll ......... [Build 160828, API 160828]
000000.000: Module Rcontrol.dll .......... [Build 160828, API 160828]
000000.000: Module ScnEditor.dll ......... [Build 160828, API 160828]
000000.000: Module XRSound.dll ........... [Build 180309, API 160828]
000000.000: Module OrbiterSound.dll ...... [Build 180310, API 160828]
============================ ERROR: ===========================
Failed loading module Modules\Plugin\BaseSyncMFD.dll (code 126)
[Orbiter::LoadModule | .\Orbiter.cpp | 600]
===============================================================
000000.000: Module DscovrMFD.dll ......... [Build 150205, API 100830]
000000.000:
000000.000: **** Creating simulation session
000000.000: D3D9: [DirectX 9 Initialized]
            D3D9: 3D-Adapter.............. : NVIDIA GeForce GT 240M
            D3D9: MaxTextureWidth......... : 8192
            D3D9: MaxTextureHeight........ : 8192
            D3D9: MaxTextureRepeat........ : 8192
            D3D9: VolTexAddressCaps....... : 0x3F
            D3D9: NumSimultaneousRTs...... : 4
            D3D9: VertexDeclCaps.......... : 0x30F
            D3D9: MiscCaps................ : 0x2FCEF2
            D3D9: XNA Math Support........ : Yes
            D3D9: Vertex Texture.......... : Yes
            D3D9: Shadow Mapping.......... : Yes
            D3D9: D3DFMT_A16B16G16R16F.... : Yes
            D3D9: D3DFMT_A32B32G32R32F.... : Yes
            D3D9: D3DFMT_D32F_LOCKABLE.... : Yes
            D3D9: D3DFMT_A2R10G10B10...... : Yes
            D3D9: D3DFMT_L8............... : Yes
            D3D9: D3DDTCAPS_DEC3N......... : No
            D3D9: D3DDTCAPS_FLOAT16_2..... : Yes
            D3D9: D3DDTCAPS_FLOAT16_4..... : Yes
            D3D9: Runs under WINE......... : No
            D3D9: Available Texture Memory : 3003 MB
000000.000: D3D9: [3DDevice Initialized]
000000.000: D3D9: [Loading Constellations]
000000.000: D3D9: [D3D9Client Initialized]
000000.000: Module Sun.dll ............... [Build 160828, API 160828]
VSOP87(E) Sun: Precision 1e-006, Terms 554/6634
000000.000: Module Mercury.dll ........... [Build 160828, API 160828]
VSOP87(B) Mercury: Precision 1e-005, Terms 167/7123
000000.000: Module Venus.dll ............. [Build 160828, API 160828]
000000.000: Module VenusAtm2006.dll ...... [Build 160828, API 160828]
VSOP87(B) Venus: Precision 1e-005, Terms 79/1710
000000.000: Module Earth.dll ............. [Build 160828, API 160828]
000000.000: Module EarthAtmJ71G.dll ...... [Build 160828, API 160828]
VSOP87(B) Earth: Precision 1e-008, Terms 2564/2564
============================ ERROR: ===========================
Parse error from base definition file for Cape Canaveral: Block: TEXn: expected 3 values (*char, scalar, scalar)
[BaseObject::ParseError | .\Baseobj.cpp | 184]
===============================================================
============================ ERROR: ===========================
Parse error from base definition file for Cape Canaveral: Block: TEXn: expected 3 values (*char, scalar, scalar)
[BaseObject::ParseError | .\Baseobj.cpp | 184]
===============================================================
000000.000: BaseObject: Parse error 2
000000.000: Module Moon.dll .............. [Build 160828, API 160828]
ELP82: Precision 1e-005, Terms 116/829
000000.000: Module Mars.dll .............. [Build 160828, API 160828]
000000.000: Module MarsAtm2006.dll ....... [Build 160828, API 160828]
VSOP87(B) Mars: Precision 1e-005, Terms 405/6400
000000.000: Module Phobos.dll ............ [Build ******, API 060425]
000000.000: Module Deimos.dll ............ [Build ******, API 060425]
000000.000: Module Galsat.dll ............ [Build 160828, API 160828]
000000.000: Module Jupiter.dll ........... [Build 160828, API 160828]
VSOP87(B) Jupiter: Precision 1e-006, Terms 1624/3625
000000.000: Module Io.dll ................ [Build 160828, API 160828]
000000.000: Module Europa.dll ............ [Build 160828, API 160828]
000000.000: Module Ganymede.dll .......... [Build 160828, API 160828]
000000.000: Module Callisto.dll .......... [Build 160828, API 160828]
000000.000: Module Satsat.dll ............ [Build 160828, API 160828]
000000.000: Module Saturn.dll ............ [Build 160828, API 160828]
VSOP87(B) Saturn: Precision 1e-006, Terms 2904/6365
000000.000: Module Mimas.dll ............. [Build 160828, API 160828]
SATSAT Mimas: Terms 113
000000.000: Module Enceladus.dll ......... [Build 160828, API 160828]
SATSAT Enceladus: Terms 33
000000.000: Module Tethys.dll ............ [Build 160828, API 160828]
SATSAT Tethys: Terms 101
000000.000: Module Dione.dll ............. [Build 160828, API 160828]
SATSAT Dione: Terms 59
000000.000: Module Rhea.dll .............. [Build 160828, API 160828]
SATSAT Rhea: Terms 68
000000.000: Module Titan.dll ............. [Build 160828, API 160828]
SATSAT Titan: Terms 100
000000.000: Module Iapetus.dll ........... [Build 160828, API 160828]
SATSAT Iapetus: Terms 605
000000.000: Module Uranus.dll ............ [Build 160828, API 160828]
VSOP87(B) Uranus: Precision 1e-006, Terms 1827/5269
000000.000: Module Miranda.dll ........... [Build ******, API 060425]
000000.000: Module Ariel.dll ............. [Build ******, API 060425]
000000.000: Module Umbriel.dll ........... [Build ******, API 060425]
000000.000: Module Titania.dll ........... [Build ******, API 060425]
000000.000: Module Oberon.dll ............ [Build ******, API 060425]
000000.000: Module Neptune.dll ........... [Build 160828, API 160828]
VSOP87(B) Neptune: Precision 1e-006, Terms 391/2024
000000.000: Finished initialising world
000000.000: Module SPACESHUTTLE2016D.dll . [Build 190612, API 160828]
============================ ERROR: ===========================
Mesh not found: .\Meshes\2016SPACESHUTTLE\Discovery\DiscoveryORG2016f.msh
[MeshManager::LoadMesh | .\Mesh.cpp | 1238]
===============================================================
D3D9: ERROR: D3D9Client::clbkStoreMeshPersistent(2016SPACESHUTTLE\Discovery\DiscoveryORG2016f) hMesh is NULL
000000.000: ---------------------------------------------------------------
000000.000: >>> WARNING: Obsolete API function used: VESSEL::CreateVariableDragElement
000000.000: At least one active module is accessing an obsolete interface function.
000000.000: Addons which rely on obsolete functions may not be compatible with
000000.000: future versions of Orbiter.
000000.000: ---------------------------------------------------------------
000000.000: >>> ERROR: No vessel class configuration file found for:
============================ ERROR: ===========================
ORBUS
[Vessel::OpenConfigFile | .\Vessel.cpp | 243]
===============================================================
000000.000: >>> TERMINATING <<<

and for STS61-C ORBIT :
missing : 2016SPACESHUTTLE\Discovery\DiscoveryORG2016f

Code:
**** Orbiter.log
000000.000: Build Aug 28 2016 [v.160828]
000000.000: Timer precision: 6.41633e-007 sec
000000.000: Found 0 joystick(s)
000000.000: Module AtlantisConfig.dll .... [Build 160828, API 160828]
000000.000: Module AtmConfig.dll ......... [Build 160828, API 160828]
000000.000: Module DGConfigurator.dll .... [Build 160828, API 160828]
000000.000: ---------------------------------------------------------------
BaseDir    : C:\ORBITER 2016\ORBITER 2016 THD\
ConfigDir  : C:\ORBITER 2016\ORBITER 2016 THD\Config\
MeshDir    : C:\ORBITER 2016\ORBITER 2016 THD\Meshes\
TextureDir : C:\ORBITER 2016\ORBITER 2016 THD\Textures\
HightexDir : C:\ORBITER 2016\ORBITER 2016 THD\Textures2\
ScenarioDir: C:\ORBITER 2016\ORBITER 2016 THD\Scenarios\
000000.000: ---------------------------------------------------------------
000000.000: Module D3D9Client.dll ........ [Build 190225, API 160828]
============================ ERROR: ===========================
Failed loading module Modules\Plugin\CamShake.dll (code 126)
[Orbiter::LoadModule | .\Orbiter.cpp | 600]
===============================================================
============================ ERROR: ===========================
Failed loading module Modules\Plugin\InterMFD56.dll (code 126)
[Orbiter::LoadModule | .\Orbiter.cpp | 600]
===============================================================
000000.000: Module LunarTransferMFD.dll .. [Build 160829, API 160815]
============================ ERROR: ===========================
Failed loading module Modules\Plugin\Map3DMFD.dll (code 126)
[Orbiter::LoadModule | .\Orbiter.cpp | 600]
===============================================================
============================ ERROR: ===========================
Failed loading module Modules\Plugin\ReFuelMFD.dll (code 126)
[Orbiter::LoadModule | .\Orbiter.cpp | 600]
===============================================================
000000.000: Module ScriptMFD.dll ......... [Build 160828, API 160828]
000000.000: Module Multistage2015_MFD.dll  [Build 170626, API 160828]
000000.000: Module InterMFD57.dll ........ [Build 161216, API 160910]
000000.000: ---------------------------------------------------------------
000000.000: >>> WARNING: Obsolete API function used: oapiRegisterMFDMode
000000.000: At least one active module is accessing an obsolete interface function.
000000.000: Addons which rely on obsolete functions may not be compatible with
000000.000: future versions of Orbiter.
000000.000: ---------------------------------------------------------------
000000.000: Module Meshdebug.dll ......... [Build 160828, API 160828]
000000.000: Module LuaMFD.dll ............ [Build 160828, API 160828]
000000.000: Module transx.dll ............ [Build 160216, API 160214]
000000.000: Module CustomMFD.dll ......... [Build 160828, API 160828]
000000.000: Module AttitudeMFD.dll ....... [Build ******, API 060425]
000000.000: Module HUDdataMFD.dll ........ [Build ******, API 060425]
000000.000: Module LuaConsole.dll ........ [Build 160828, API 160828]
000000.000: Module ExtMFD.dll ............ [Build 160828, API 160828]
============================ ERROR: ===========================
Failed loading module Modules\Plugin\DX9ExtMFD.dll (code 126)
[Orbiter::LoadModule | .\Orbiter.cpp | 600]
===============================================================
000000.000: Module FlightData.dll ........ [Build 160828, API 160828]
000000.000: Module Framerate.dll ......... [Build 160828, API 160828]
000000.000: Module Rcontrol.dll .......... [Build 160828, API 160828]
000000.000: Module ScnEditor.dll ......... [Build 160828, API 160828]
000000.000: Module XRSound.dll ........... [Build 180309, API 160828]
000000.000: Module OrbiterSound.dll ...... [Build 180310, API 160828]
============================ ERROR: ===========================
Failed loading module Modules\Plugin\BaseSyncMFD.dll (code 126)
[Orbiter::LoadModule | .\Orbiter.cpp | 600]
===============================================================
000000.000: Module DscovrMFD.dll ......... [Build 150205, API 100830]
000000.000:
000000.000: **** Creating simulation session
000000.000: D3D9: [DirectX 9 Initialized]
000000.000: D3D9: [3DDevice Initialized]
000000.000: D3D9: [Loading Constellations]
000000.000: D3D9: [D3D9Client Initialized]
000000.000: Module Sun.dll ............... [Build 160828, API 160828]
VSOP87(E) Sun: Precision 1e-006, Terms 554/6634
000000.000: Module Mercury.dll ........... [Build 160828, API 160828]
VSOP87(B) Mercury: Precision 1e-005, Terms 167/7123
000000.000: Module Venus.dll ............. [Build 160828, API 160828]
000000.000: Module VenusAtm2006.dll ...... [Build 160828, API 160828]
VSOP87(B) Venus: Precision 1e-005, Terms 79/1710
000000.000: Module Earth.dll ............. [Build 160828, API 160828]
000000.000: Module EarthAtmJ71G.dll ...... [Build 160828, API 160828]
VSOP87(B) Earth: Precision 1e-008, Terms 2564/2564
============================ ERROR: ===========================
Parse error from base definition file for Cape Canaveral: Block: TEXn: expected 3 values (*char, scalar, scalar)
[BaseObject::ParseError | .\Baseobj.cpp | 184]
===============================================================
============================ ERROR: ===========================
Parse error from base definition file for Cape Canaveral: Block: TEXn: expected 3 values (*char, scalar, scalar)
[BaseObject::ParseError | .\Baseobj.cpp | 184]
===============================================================
000000.000: BaseObject: Parse error 2
000000.000: Module Moon.dll .............. [Build 160828, API 160828]
ELP82: Precision 1e-005, Terms 116/829
000000.000: Module Mars.dll .............. [Build 160828, API 160828]
000000.000: Module MarsAtm2006.dll ....... [Build 160828, API 160828]
VSOP87(B) Mars: Precision 1e-005, Terms 405/6400
000000.000: Module Phobos.dll ............ [Build ******, API 060425]
000000.000: Module Deimos.dll ............ [Build ******, API 060425]
000000.000: Module Galsat.dll ............ [Build 160828, API 160828]
000000.000: Module Jupiter.dll ........... [Build 160828, API 160828]
VSOP87(B) Jupiter: Precision 1e-006, Terms 1624/3625
000000.000: Module Io.dll ................ [Build 160828, API 160828]
000000.000: Module Europa.dll ............ [Build 160828, API 160828]
000000.000: Module Ganymede.dll .......... [Build 160828, API 160828]
000000.000: Module Callisto.dll .......... [Build 160828, API 160828]
000000.000: Module Satsat.dll ............ [Build 160828, API 160828]
000000.000: Module Saturn.dll ............ [Build 160828, API 160828]
VSOP87(B) Saturn: Precision 1e-006, Terms 2904/6365
000000.000: Module Mimas.dll ............. [Build 160828, API 160828]
SATSAT Mimas: Terms 113
000000.000: Module Enceladus.dll ......... [Build 160828, API 160828]
SATSAT Enceladus: Terms 33
000000.000: Module Tethys.dll ............ [Build 160828, API 160828]
SATSAT Tethys: Terms 101
000000.000: Module Dione.dll ............. [Build 160828, API 160828]
SATSAT Dione: Terms 59
000000.000: Module Rhea.dll .............. [Build 160828, API 160828]
SATSAT Rhea: Terms 68
000000.000: Module Titan.dll ............. [Build 160828, API 160828]
SATSAT Titan: Terms 100
000000.000: Module Iapetus.dll ........... [Build 160828, API 160828]
SATSAT Iapetus: Terms 605
000000.000: Module Uranus.dll ............ [Build 160828, API 160828]
VSOP87(B) Uranus: Precision 1e-006, Terms 1827/5269
000000.000: Module Miranda.dll ........... [Build ******, API 060425]
000000.000: Module Ariel.dll ............. [Build ******, API 060425]
000000.000: Module Umbriel.dll ........... [Build ******, API 060425]
000000.000: Module Titania.dll ........... [Build ******, API 060425]
000000.000: Module Oberon.dll ............ [Build ******, API 060425]
000000.000: Module Neptune.dll ........... [Build 160828, API 160828]
VSOP87(B) Neptune: Precision 1e-006, Terms 391/2024
000000.000: Finished initialising world
000000.000: Module SPACESHUTTLE2016D.dll . [Build 190612, API 160828]
============================ ERROR: ===========================
Mesh not found: .\Meshes\2016SPACESHUTTLE\Discovery\DiscoveryORG2016f.msh
[MeshManager::LoadMesh | .\Mesh.cpp | 1238]
===============================================================
000000.000: ---------------------------------------------------------------
000000.000: >>> WARNING: Obsolete API function used: VESSEL::CreateVariableDragElement
000000.000: At least one active module is accessing an obsolete interface function.
000000.000: Addons which rely on obsolete functions may not be compatible with
000000.000: future versions of Orbiter.
000000.000: ---------------------------------------------------------------
000000.000: >>> ERROR: No vessel class configuration file found for:
============================ ERROR: ===========================
Spacecraft3
[Vessel::OpenConfigFile | .\Vessel.cpp | 243]
===============================================================
000000.000: >>> TERMINATING <<<

Do you have an idea ? :shrug:

Last edited:
Gargantua2024

Gargantua2024

The Desktop Orbinaut
Joined
Oct 14, 2016
Messages
1,057
Reaction score
1,268
Points
128
Location
San Jose Del Monte, Bulacan
gattispilot said:
Not sure on the orbit and shuttle location
Click to expand...

Here is the summary of orbital data for STS-61-C (Columbia) and STS-49 (Endeavour)

STS-61-C (Columbia)
Code:
ORBIT
   Reference[I][/I]: Geocentric (LEO)
   Perigee: 331 km
   Apogee: 338 km
   Inclination: 28.5°
   Period: 91.2 min

PAD:
   39-A

STS-49 (Endeavour)
Code:
ORBIT
   Reference: Geocentric (LEO)
   Perigee: 268 km
   Apogee: 341 km
   Inclination: 28.35°
   Period: 90.6 min

PAD:
   39-B


Based on ground track seen on their launch videos, both were launched southeast of the Cape

---------- Post added at 04:22 AM ---------- Previous post was at 03:57 AM ----------
pappy2 said:
...and for STS61-C ORBIT :
missing : 2016SPACESHUTTLE\Discovery\DiscoveryORG2016f.msh
Click to expand...


Pappy2, the missing mesh does not affect the entire scenario at all UNLESS you entered in the .SCN file a nonexistent Shuttle orbiter (e.g OV 200). It occurs in every scenario containing the Shuttle2016B vessel

pappy2 said:
Code:
000000.000: >>> ERROR: No vessel class configuration file found for:
============================ ERROR: ===========================
Spacecraft3
[Vessel::OpenConfigFile | .\Vessel.cpp | 243]
===============================================================
000000.000: >>> TERMINATING <<<

Do you have an idea ? :shrug:
Click to expand...


Hmm...it seems that there is a .CFG file containing this code:
Code:
Module = Spacecraft3
...but you don't have a Spacecraft3.DLL installed....try renaming that to:
Code:
Module = Spacecraft4
...or install Spacecraft3 instead

Last edited:
You must log in or register to reply here.

Similar threads

Johan2011
  • Locked
OHM Space Shuttle Fleet v4.8 by David413 [Deleted]
Replies
4
Views
453
Johan2011
Johan2011
J
Problem Shuttle Fleet has destroyed my Orbiter install, WARNING!
Replies
7
Views
666
gattispilot
gattispilot
Wedge313
Question STS simulation for Orbiter 2016?
Replies
4
Views
958
Abloheet
Abloheet
Johan2011
Idea STS Payloads v2.01 on Orbiter 2010-P1
Replies
0
Views
815
Johan2011
Johan2011
Johan2011
OHM Kev Shanow's K-LC-39-v9 Updated for Orbiter 2010-P1
Replies
2
Views
636
Johan2011
Johan2011
Top
