Euclid - Euclid spacecraft and launch scenario.

View attachment 33770
The Euclid spacecraft, Falcon9 launch scenario for 01 July 2023.
ESA mission to study dark matter and dark energy. Lissajous orbit around Sun-Earth L2.
Operation and installation notes in /Doc/Euclid.

REQUIREMENTS
Launch scenario requires:
Falcon9 for Orbiter2016

RECOMMENDED...

Read more about this addon...



[BrianJ]

So - a space telescope going to orbit a Lagrange point, launched by a (mostly) reusable rocket - pretty slick

Of course, NASA/ESA/SpaceX can compute these type of trajectories precisely - but its not so hard to "Buck Rogers" it once you're in a usable parking orbit (I guessed the inclination from the NOTMAR hazard area info).

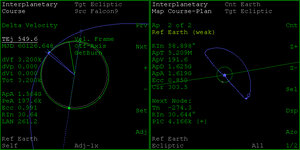

Set up a 3200m/s prograde burn (for ApA ~1.5Gm) in IMFD Course "Delta Velocity" and tweak the start time until you get that nice "eye" shape trajectory in IMFD Map "Plan" (or even a "half-eye" shape is OK)....



Make the burn and then trim velocity post-separation using the LagrangeMFD display........


Two weeks and a few correction burns (toward/away from Sun) and its looking quite good.....

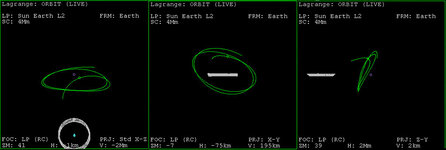

Lagrange MFD 3-view......only used 4kg of fuel so far....


Anyway, good luck to SpaceX and ESA for the launch this afternoon

Cheers,
BrianJ
