Request Artemis landers

This is what I have so far. It uses UACS.

2 docks one dock is the crew transfer and the other at top is for fuel?

Weird. it only shows 1 dock at the top;
UACS::AirlockInfo airInfo;
airInfo.name = "MK2";
airInfo.pos = { -6.6,0,0 };
airInfo.dir = { 0,1,0 };
airInfo.rot = { -1,0,0 };
airInfo.hDock = CreateDock({ 2.830, - 3.674, - 0.823 }, { 0.982, 0, - 0.191 }, { 0,1,0 });//2.830 -3.674 -0.823 0.982 0 -0.191 0 1 0 598


SetDockParams(_V(0, 7.31, 0 ), _V(0, 1, 0), _V(0, 0, 1));//ART


Attachments

Last edited:
I am told NASA is looking at this as a way to get to the Moon quickly. If NASA looks at its history either the Lunar Starship or MK 2 might not be ready before 2030

I added the 2 docks. I want to support UACS. but there are things I can't figure out. So I make another version.
Hard code my EVA guys. Right now you can use any EVA guy but you can't pick up custom cargos,.......

I have guys that can pick up things. But I wanted UACS guy to pick up my custom cargos. No success it that.

I got her to have 4 crew and do eva.

I need to add the coverings in the VC and dock part.

I can make the external airlock hatch open and if open then eva. I guess the inner airlock has a hatch also?


Attachments

  • mk2eva.jpg
    60.7 KB · Views: 10
  • mk2crew3.jpg
    48.2 KB · Views: 11
gattispilot said:
I got her to have 4 crew and do eva.

I need to add the coverings in the VC and dock part.

I can make the external airlock hatch open and if open then eva. I guess the inner airlock has a hatch also?
Click to expand...
even the accurate interior? this is sooo good

Thanks. So far I have this. 4 crew guy and 4 cargo boxes. I know all the images don't have them. but the crew can eva and move about and pick tools up. We have a buggy with 9 tools that can be deployed and picked up . now on the vc you see the window covers and dock under the cover


Attachments

  • mk2vc5.jpg
    49 KB · Views: 5
  • mk2creweva.jpg
    68.8 KB · Views: 6
  • mk2cragobox.jpg
    93.2 KB · Views: 4
  • evadrillmoon.jpg
    45.5 KB · Views: 5
gattispilot said:
Thanks. So far I have this. 4 crew guy and 4 cargo boxes. I know all the images don't have them. but the crew can eva and move about and pick tools up. We have a buggy with 9 tools that can be deployed and picked up . now on the vc you see the window covers and dock under the cover
Click to expand...
this is just super really works great a must try

Here you go. this is what I have so far. On the guy K grabs the items. keypad moves them if close to the stairs press E and you should get in. Also was a tool is deployed press e while focused on the tool and you should get back on the cart.
MK2 press ctrl and space and opens a box to do eva or cargo


Attachments

Thoughts on the mk2 airlock. I would think there would be a door between the airlock and the main area?

And there doesn't seem like a lot of room in the airlock for suits?

I redid the Flex for these crew guys.

And thanks to @BrianJ I was able to do a moveable dock on the Orion.

I have run across a weird issue. The vc is locked so no camera motion.

Also I want when the guy releases a tool it just drops to the ground landed and not bounce around,.....


Attachments

  • mk2vclayout.jpg
    45.8 KB · Views: 5
  • mk2flexcrew1.jpg
    94.4 KB · Views: 6
Last edited:
gattispilot said:
Also I want when the guy releases a tool it just drops to the ground landed and not bounce around,.....
Click to expand...
You can try these settings, they're from the Ingenuity, small and lightweight, might work or be close:
Code:
EMPTY_MASS = 2
VSIZE = 1
PMI = 0.02 0.03 0.02
CSECTIONS = 0.3 0.12 0.3
GRAVITYGDAMP = 20
ROTDRAG = 0.05 0.01 0.05


TDP_1_0_POS = -0.28 -0.04 0.28
TDP_1_0_STIFFNESS = 320
TDP_1_0_DAMPING = 12
TDP_1_0_MU = 15
TDP_1_0_MULNG = 15

TDP_1_1_POS = -0.28 -0.04 -0.28
TDP_1_1_STIFFNESS = 320
TDP_1_1_DAMPING = 12
TDP_1_1_MU = 15
TDP_1_1_MULNG = 15

TDP_1_2_POS = 0.28 -0.04 0.28
TDP_1_2_STIFFNESS = 320
TDP_1_2_DAMPING = 12
TDP_1_2_MU = 15
TDP_1_2_MULNG = 15

TDP_1_3_POS = 0.28 -0.04 -0.28
TDP_1_3_STIFFNESS = 320
TDP_1_3_DAMPING = 12
TDP_1_3_MU = 15
TDP_1_3_MULNG = 15

TDP_1_4_POS = -0.5 0.1 0
TDP_1_4_STIFFNESS = 320
TDP_1_4_DAMPING = 12
TDP_1_4_MU = 15
TDP_1_4_MULNG = 15

TDP_1_5_POS = 0.5 0.1 0
TDP_1_5_STIFFNESS = 320
TDP_1_5_DAMPING = 12
TDP_1_5_MU = 15
TDP_1_5_MULNG = 15

TDP_1_6_POS = 0 0 -0.08
TDP_1_6_STIFFNESS = 320
TDP_1_6_DAMPING = 12
TDP_1_6_MU = 15
TDP_1_6_MULNG = 15

TDP_1_7_POS = 0 0.5 0
TDP_1_7_STIFFNESS = 320
TDP_1_7_DAMPING = 12
TDP_1_7_MU = 15
TDP_1_7_MULNG = 15

TDP_1_8_POS = 0 0 0.08
TDP_1_8_STIFFNESS = 320
TDP_1_8_DAMPING = 12
TDP_1_8_MU = 15
TDP_1_8_MULNG = 15

Thanks.
so I am using this:
void LEVA::SetTDVTXStuff()
{
double x_target = -0.5;
double stiffness = (-1) * (ASTROMASS * G) / (3 * x_target);
double damping = 0.9 * (2 * sqrt(ASTROMASS * stiffness));
double ro = 0.3;
double Height_From_Ground = 0;
for (int i = 0; i < ntdvtx; i++)
{
tdvtx[i].damping = damping;
tdvtx[i].mu = 3;
tdvtx[i].mu_lng = 3;
tdvtx[i].stiffness = stiffness;
}
tdvtx[0].pos.x = cos(30 * RAD) * ro;
tdvtx[0].pos.y = -Height_From_Ground;
tdvtx[0].pos.z = -sin(30 * RAD) * ro;
tdvtx[1].pos.x = 0;
tdvtx[1].pos.y = -Height_From_Ground;
tdvtx[1].pos.z = 1 * ro;
tdvtx[2].pos.x = -cos(30 * RAD) * ro;
tdvtx[2].pos.y = -Height_From_Ground;
tdvtx[2].pos.z = -sin(30 * RAD) * ro;

SetTouchdownPoints(tdvtx, ntdvtx);
} and then made this change
void LEVA::SetTDVTXStuff()
{
double x_target = -0.5;
double stiffness = 320;
double damping = 12;
double ro = 0.3;
double Height_From_Ground = .09;
for (int i = 0; i < ntdvtx; i++)
{
tdvtx[i].damping = damping;
tdvtx[i].mu = 15;
tdvtx[i].mu_lng = 15;
tdvtx[i].stiffness = stiffness;
}
tdvtx[0].pos.x = cos(30 * RAD) * ro;
tdvtx[0].pos.y = -Height_From_Ground;
tdvtx[0].pos.z = -sin(30 * RAD) * ro;
tdvtx[1].pos.x = 0;
tdvtx[1].pos.y = -Height_From_Ground;
tdvtx[1].pos.z = 1 * ro;
tdvtx[2].pos.x = -cos(30 * RAD) * ro;
tdvtx[2].pos.y = -Height_From_Ground;
tdvtx[2].pos.z = -sin(30 * RAD) * ro;

SetTouchdownPoints(tdvtx, ntdvtx);
}
and when dropped the hammer goes thru the surface.

it's y is .09


Attachments

  • evahammer.jpg
    49.2 KB · Views: 4
gattispilot said:
and when dropped the hammer goes thru the surface.
Click to expand...
Does it sink and stop? (or continue!?) It doesn't bounce anymore? Is it upside-down?
What is the object mass (astromass)? Mass, PMI etc. must be similar for it work.
If it's not upside-down etc. I suspect the mass is too high, reduce, and/or increase stiffness/damping.
gattispilot said:
double Height_From_Ground = .09;
Click to expand...
Does increasing help?

Last edited:
I redid the code and dropped the hammer. It rolled a bit . but is below the surface.

EVAHAMMER:ARTEMISEVATOOLS\EVAHAMMER
STATUS Landed Moon
POS -6.8061946 -80.3584411
HEADING 65.61
ALT -0.093
AROT 4.725 -30.791 -10.905
AFCMODE 7
NAVFREQ 0 0
TYPE 5
END

not sure what this is:
GRAVITYGDAMP


Attachments

  • evahammer1.jpg
    26.4 KB · Views: 4

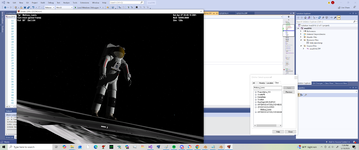

  • 1778459437236.png
    186.6 KB · Views: 5
  • 1778459466953.png
    131.2 KB · Views: 4
  • 1778459508004.png
    142.7 KB · Views: 5
  • 1778459589097.png
    142.7 KB · Views: 5
So I raised the height above ground and moved it and it was above the surface. grab it and released and it landed below the surface

Thanks. here is the mesh.
If I make a default set of TD. I get the hammer to sit on the surface. the damping,,,,, is default
I apply the .6 height and the dll one is above the surface????????
and the mesh seem rotated differently

TDP_1_0_POS = 0 -0.6 3.3
TDP_1_0_STIFFNESS = 6540
TDP_1_0_DAMPING = 4603.22
TDP_1_0_MU = 0.1
TDP_1_0_MULNG = 0.2

TDP_1_1_POS = -2.59808 -0.6 -1.5
TDP_1_1_STIFFNESS = 6540
TDP_1_1_DAMPING = 4603.22
TDP_1_1_MU = 3
TDP_1_1_MULNG = 0.2

TDP_1_2_POS = 2.59808 -0.6 -1.5
TDP_1_2_STIFFNESS = 6540
TDP_1_2_DAMPING = 4603.22
TDP_1_2_MU = 3
TDP_1_2_MULNG = 0.2

TDP_1_3_POS = 0 3 0
TDP_1_3_STIFFNESS = 6540
TDP_1_3_DAMPING = 4603.22
TDP_1_3_MU = 3
TDP_1_3_MULNG = 0.2

dll:
void LEVA::SetTDVTXStuff()
{
double x_target = -0.5;
double stiffness = 320;
double damping = 12;
double ro = 0.3;
double Height_From_Ground = .6;
for (int i = 0; i < ntdvtx; i++)
{
tdvtx[i].damping = damping;
tdvtx[i].mu = 15;
tdvtx[i].mu_lng = 15;
tdvtx[i].stiffness = stiffness;
}
tdvtx[0].pos.x = cos(30 * RAD) * ro;
tdvtx[0].pos.y = -Height_From_Ground;
tdvtx[0].pos.z = -sin(30 * RAD) * ro;
tdvtx[1].pos.x = 0;
tdvtx[1].pos.y = -Height_From_Ground;
tdvtx[1].pos.z = 1 * ro;
tdvtx[2].pos.x = -cos(30 * RAD) * ro;
tdvtx[2].pos.y = -Height_From_Ground;
tdvtx[2].pos.z = -sin(30 * RAD) * ro;

SetTouchdownPoints(tdvtx, ntdvtx);
}


Attachments

The VB one looks "ok".
You got 4 VB TD points, the code only has 3, the values are spread over the number of points so it will be slightly different. I think 4 or more is "safer"?
What does "x_target" do?
gattispilot said:
.6 height and the dll one is above the surface
Click to expand...
This looks about right judging from the picture?

I removed the x_target
so weird. when I release the hammer is shows landed but below the surface.
EVAHAMMER:ARTEMISEVATOOLS\EVAHAMMER
STATUS Landed Moon
BASE Malapert_A_Rim:1
POS -6.8098995 -80.3597804
HEADING 238.75
ALT -0.603
AROT -173.159 37.438 -167.918
AFCMODE 7
NAVFREQ 0 0
TYPE 5
END
vb td
TDP_1_0_POS = 0 -0.6 3
TDP_1_0_STIFFNESS = 320
TDP_1_0_DAMPING = 12
TDP_1_0_MU = 15
TDP_1_0_MULNG = 15

TDP_1_1_POS = -3 -0.6 3.3
TDP_1_1_STIFFNESS = 320
TDP_1_1_DAMPING = 12
TDP_1_1_MU = 15
TDP_1_1_MULNG = 15

TDP_1_2_POS = 3 -0.6 3
TDP_1_2_STIFFNESS = 320
TDP_1_2_DAMPING = 12
TDP_1_2_MU = 15
TDP_1_2_MULNG = 15

But as you can see the VB hammer is higher than the dll. I wonder what sets the altitude? in the scn it is -.603 which is the height?


Attachments

  • vbhammer.jpg
    68.7 KB · Views: 3
  • dllevahammer.jpg
    29.9 KB · Views: 3
