CAPSTONE mission

Ajaja

Active member
Joined
Apr 20, 2008
Messages
190
Reaction score
56
Points
28
HORIZONS says "Data through Oct 23, predictions thereafter"
I think everything after Oct 23 is just calculated ballistics without corrections.


BrianJ

Addon Developer
Addon Developer
Joined
Apr 19, 2008
Messages
1,550
Reaction score
700
Points
128
Location
Code 347
Hi,
HORIZONS says "Data through Oct 23, predictions thereafter"
I think everything after Oct 23 is just calculated ballistics without corrections.
I'm not so sure - if you look at Horizons data the aposelene goes from 205681km to 97714km during 18mins around periselene, on 13 November 2022. That doesn't happen in Orbiter without a burn.

Looks fine.
For example, if you try to propagate backward from 14 Dec 2022 there is the trajectory:
Nice image - what are you using? GMAT?
What happens if you propagate forward? I'd guess you get the same as me in Orbiter - Capstone starts to escape lunar orbit.

Looks like the orbit is more-or-less stable for 30 days, then starts to unravel. I guess I was expecting longer term stability and a more consistent orbit plane relative to Earth-Moon line.

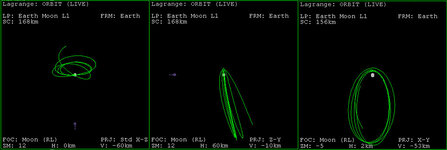

I made a scenario for 14 Nov 06:00UTC (about 6 hours after LOI), here's a 3-view plot from LagrangeMFD (Earth-Moon rotating frame) for 30 days from 14 Nov-14 Dec. Concurs with your image pretty much, and I think you can see the orbit starting to drift at the end.
I would think there needs to be a correction burn before 14 Dec.
At least I have an idea of what an NRHO looks like on LagrangeMFD now!
Cheers,
Brian


Ajaja

Active member
Joined
Apr 20, 2008
Messages
190
Reaction score
56
Points
28
Yes, I used GMAT.
And yes, according to GMAT as well as Orbiter CAPSTONE with this POS/VEL from HORIZONS escapes Moon just soon after 14 Dec. Moreover, it looks like it's already way off NRHO, so I think there should be corrections before this date (and after 14 Nov) which were not included in HORIZONS data. Maybe they are not scheduled yet.

Last edited:

BrianJ

Addon Developer
Addon Developer
Joined
Apr 19, 2008
Messages
1,550
Reaction score
700
Points
128
Location
Code 347
Yes, I used GMAT.
And yes, according to GMAT as well as Orbiter CAPSTONE with this POS/VEL from HORIZONS escapes Moon just soon after 14 Dec. Moreover, it looks like it's already way off NRHO, so I think there should be corrections before this date (and after 14 Nov) which were not included in HORIZONS data. Maybe they are not scheduled yet.
I think you must be right. So maybe we'll see a more stable/finely tuned NRHO shown in the Horizons data shortly.


Ajaja

Active member
Joined
Apr 20, 2008
Messages
190
Reaction score
56
Points
28
Yes, I can confirm, there are course corrections before Nov 14-15, but after that it's ballistics.
I was even able to find some parameters for solar radiation pressure model to get almost the same POS/VEL after propagating Nov 15 - Dec 14:
HORIZONS (Moon body center, Ecliptic of J2000.0 ):
Code:
2459927.500000000, A.D. 2022-Dec-14 00:00:00.0000, -3.540615979107255E+04,  1.054132688459846E+04, -4.928965709311910E+04, -3.865808101214649E-02,  7.819699210330527E-02, -2.120745164618341E-01,
GMAT:
Code:
TDB Epoch:    14 Dec 2022 00:00:00.000
        Cartesian State
        ---------------------------
        X  =  -35406.854827069 km
        Y  =   10541.648590011 km
        Z  =  -49289.027182366 km
        VX =  -0.0386621288764 km/sec
        VY =   0.0781966607821 km/sec
        VZ =  -0.2120764223620 km/sec

BTW, solar radiation pressure makes a significant difference for a such tiny spacecraft.


Ajaja

Active member
Joined
Apr 20, 2008
Messages
190
Reaction score
56
Points
28
BTW, they have removed the data after Nov 14 from Horizons.
Now it's only:
