Velcro Rockets

sputnik

Addon Developer
Addon Developer
Donator
Joined
Apr 3, 2008
Messages
424
Reaction score
0
Points
16
Location
Palmdale
Website
www.worldof2001.com
Yes, it sets the orientation of the attach point, so changing it will rotate the booster about the attach point.

And, as you've seen, if the orientation vector isn't normalized, strange results ensue.

Yes, trig is going to be required.

To quote myself, choosing 1 0 0 puts the thing along the X-axis; 0.877 0.5 0 is 30 degrees off from that; 0.5 0.877 0 is 60 degrees off, and so on. To put 8 boosters around, they'd be at 1 0 0, and .707 .707 0, and 0 1 0, and -.707 .707 0, and so on.


MetalheadOC

New member
Joined
Oct 23, 2011
Messages
16
Reaction score
0
Points
0
Location
South Whidbey, WA
Yes, it sets the orientation of the attach point, so changing it will rotate the booster about the attach point.

And, as you've seen, if the orientation vector isn't normalized, strange results ensue.

Yes, trig is going to be required.

To quote myself, choosing 1 0 0 puts the thing along the X-axis; 0.877 0.5 0 is 30 degrees off from that; 0.5 0.877 0 is 60 degrees off, and so on. To put 8 boosters around, they'd be at 1 0 0, and .707 .707 0, and 0 1 0, and -.707 .707 0, and so on.

Never did take trig :facepalm:

So, if the first booster is in the right place at 4 0 1, what should it's rotation #'s be, and what should be the #'s of the next booster?


sputnik

Addon Developer
Addon Developer
Donator
Joined
Apr 3, 2008
Messages
424
Reaction score
0
Points
16
Location
Palmdale
Website
www.worldof2001.com
Well, trig is what you need here.

Sigh. If the first booster is at (4,0,1), its orientation should be (1,0,0).
The next one, at 45 degrees around, well, the sine and cosine of 45 degrees is 0.707, so the position should be 0.707*4, or (2.828, 2.828, 1) and direction should be (0.707, 0.707, 0).
The third booster would be at (0,4,1) and direction (0,1,0).
The fourth would be at (-2.828, 2.828,1) and direction (-0.707, 0.707, 0).
The fifth would be (-4,0,1) and direction (-1,0,0).
The sixth would be (-2.828, -2.828,1) and direction (-0.707, -0.707, 0).
The seventh is (0,-4,1) and direction (0,-1,0).
The eighth is (2.828, -2.828,1) and direction (0.707, -0.707, 0).


Donamy

Addon Developer
Addon Developer
Donator
Beta Tester
Joined
Oct 16, 2007
Messages
6,834
Reaction score
89
Points
123
Location
Cape
That's what I like about AC3D. Just place two vertices and it gives you the normalized angle.


Donamy

Addon Developer
Addon Developer
Donator
Beta Tester
Joined
Oct 16, 2007
Messages
6,834
Reaction score
89
Points
123
Location
Cape
I'm thinking of using your velcro rockets for my Jason Mars lander. I like the fact that you can use the VC during launch, which multistage2 does not.


DaveS

Space Shuttle Ultra Project co-developer
Addon Developer
Donator
Beta Tester
Joined
Feb 4, 2008
Messages
8,989
Reaction score
284
Points
173
That's what I like about AC3D. Just place two vertices and it gives you the normalized angle.
Donamy, could you PM me with the exact procedure to obtain the normalized vectors?


Donamy

Addon Developer
Addon Developer
Donator
Beta Tester
Joined
Oct 16, 2007
Messages
6,834
Reaction score
89
Points
123
Location
Cape
To set the normal angles in the console and

clipboard.

goto the tcl folder, open the ac3d.tcl file

find:



set cent [ac3d get_selection_centre]

}


;before the "}" add this.



display_message "axis: $axis"
puts "axis: $axis"
clipboard clear
clipboard append $axis



It should look like this:



set cent [ac3d get_selection_centre]
display_message "axis: $axis"
puts "axis: $axis"
clipboard clear
clipboard append $axis
}


Then while in vertex mode select 2 vertices, select rotation mode, click C then set axis. You should see the three numbers in the bottom center of the screen.



One thing to remember is that the X axis in AC3D is opposte from Orbiter, so if the first number negative, change it to positive and visa versa.


MetalheadOC

New member
Joined
Oct 23, 2011
Messages
16
Reaction score
0
Points
0
Location
South Whidbey, WA
Well, trig is what you need here.

Sigh. If the first booster is at (4,0,1), its orientation should be (1,0,0).
The next one, at 45 degrees around, well, the sine and cosine of 45 degrees is 0.707, so the position should be 0.707*4, or (2.828, 2.828, 1) and direction should be (0.707, 0.707, 0).
The third booster would be at (0,4,1) and direction (0,1,0).
The fourth would be at (-2.828, 2.828,1) and direction (-0.707, 0.707, 0).
The fifth would be (-4,0,1) and direction (-1,0,0).
The sixth would be (-2.828, -2.828,1) and direction (-0.707, -0.707, 0).
The seventh is (0,-4,1) and direction (0,-1,0).
The eighth is (2.828, -2.828,1) and direction (0.707, -0.707, 0).

Thank youuuu!

Sorry, math was never one of my strong points... if you need literary analysys & copy editing of a manual, or mechanical work on an actualrocket,that I can help you with.:blush:

Almost finished here... now that the boosters are in the right place, I'd like to get them to jettison in pairs a couple seconds apart. I figured I could just set each pair with a little less fuel than the final pair. I thought this would be thru the PRPLEVEL line, but that doesn't seem to affect anything. Is this even possible without a .cfg for each pair, or do the booster need the FUEL line for that?

Also, is there any easy way to view the various fairings & interstages in the Velco parts bin, other than creating each one manually with the scenario editor & guessing?


sputnik

Addon Developer
Addon Developer
Donator
Joined
Apr 3, 2008
Messages
424
Reaction score
0
Points
16
Location
Palmdale
Website
www.worldof2001.com
You certainly SHOULD be able to set the PRPLEVEL in each booster's paragraph (not the one for Energia-M), but if you're starting on a launch pad the auto-refuel feature of the launch pad might be defeating your intent. You could try giving each booster a location that's out in space, and then it would only click into place when you ignite the engines, but that's not very reliable.

You could try tweaking with a Maxfuel =
Or, you could keep the fuel where it is and adjust the burn rate slightly by tweaking the thrust (MaxMainThrust = ) instead.

To see what's in the Velcro toolkit, best way is to browse the folder and read the .cfg's. Hopefully they explain a bit what they do. That doesn't show you what they look like, though.


MetalheadOC

New member
Joined
Oct 23, 2011
Messages
16
Reaction score
0
Points
0
Location
South Whidbey, WA
You certainly SHOULD be able to set the PRPLEVEL in each booster's paragraph (not the one for Energia-M), but if you're starting on a launch pad the auto-refuel feature of the launch pad might be defeating your intent. You could try giving each booster a location that's out in space, and then it would only click into place when you ignite the engines, but that's not very reliable.

You could try tweaking with a Maxfuel =
Or, you could keep the fuel where it is and adjust the burn rate slightly by tweaking the thrust (MaxMainThrust = ) instead.

To see what's in the Velcro toolkit, best way is to browse the folder and read the .cfg's. Hopefully they explain a bit what they do. That doesn't show you what they look like, though.

What's the proper syntax for the PRPLEVEL call?

If I set up fairings as "stages," parallel burn to the Energia-M, JETT_ON_EMPTy 0, will they then separate along with it?


sputnik

Addon Developer
Addon Developer
Donator
Joined
Apr 3, 2008
Messages
424
Reaction score
0
Points
16
Location
Palmdale
Website
www.worldof2001.com
PRPLEVEL 0:1.000
...to set the first tank (tank 0) to full. Just cut and paste; it's certainly used elsewhere in the scenario.

If I set up fairings as "stages," parallel burn to the Energia-M, JETT_ON_EMPTy 0, will they then separate along with it?

I can't say I've ever tried that. But it certainly ought to work.
But what's wrong with doing it the usual way?


MetalheadOC

New member
Joined
Oct 23, 2011
Messages
16
Reaction score
0
Points
0
Location
South Whidbey, WA
PRPLEVEL 0:1.000
...to set the first tank (tank 0) to full. Just cut and paste; it's certainly used elsewhere in the scenario.



I can't say I've ever tried that. But it certainly ought to work.
But what's wrong with doing it the usual way?

I'm trying that now, but not sure how to make it work right. My payloads are strapped to both sides of the Energia core. So I need pairs of fairing to jettison in the same direction. ie, two to the "left," two to the "right," as opposed to "left, right, up and down" like a normal 4-part fairing would. Make sense?


MetalheadOC

New member
Joined
Oct 23, 2011
Messages
16
Reaction score
0
Points
0
Location
South Whidbey, WA
I'm trying that now, but not sure how to make it work right. My payloads are strapped to both sides of the Energia core. So I need pairs of fairing to jettison in the same direction. ie, two to the "left," two to the "right," as opposed to "left, right, up and down" like a normal 4-part fairing would. Make sense?

OK, nevermind about the fairings, figured out how to get it to work like I wanted, disgustingly easy too with how I had it set up. :facepalm:

So my last problem, if you please, is that the autopilot seems to have a mind of its own now. No matter what I set the launch azimuth to, whether in the .scn or with the U key in-sim, it always puts me into a polar orbit with a heading of around 150? Here's the finished (mostly) working .scn:

Code:
BEGIN_DESC
The Energia booster
END_DESC

BEGIN_ENVIRONMENT
  System Sol
  Date MJD 39307.95
END_ENVIRONMENT

BEGIN_FOCUS
  Ship Energia-M
END_FOCUS

BEGIN_CAMERA
  TARGET Energia
  MODE Extern
  POS 9.73 -0.51 -123.30
  TRACKMODE TargetRelative
  FOV 50.00
END_CAMERA

BEGIN_HUD
  TYPE Surface
END_HUD

BEGIN_MFD Left
  TYPE Surface
END_MFD

BEGIN_MFD Right
  TYPE Orbit
  PROJ Ship
  REF Earth
END_MFD

SCREENHEIGHT 150
PITCHMULTIPLE 0.15
MINPITCH 50

BEGIN_SHIPS
Energia:Velcro/EnergiaCore
  STATUS Landed Earth
  BASE Doberai:6
  HEADING 0.00
  TGT_HEADING 090.0
  FUEL 0.9
  CONFIGURATION 0
  PAYLOAD Zvezda /ISSR/ISS_Zvezda /ISSR/Zvezda 0 6.5 -6 118000.0 0 0.0 1.0
  PAYLOAD Zarya /ISSR/ISS_Zarya /ISSR/Zarya 0 -6.5 -6 118000.0 0 0.0 1.0
  DELAYSTART 5
END
Energia-M:Velcro/EnergiaMCore
  STATUS Landed Earth
  BASE Doberai:6
  HEADING 0.00
  TGT_HEADING 090.0
  FUEL 1.0
  CONFIGURATION 0
  SERIESBURN 0 Energia 0.0 0.0 -30  0.0 1.0 0.0
  PAYLOAD Interstage Velcro/Shuttle_ACC Velcro/Shuttle_ACC 0 0 14.5 1500 0 1
END
Booster1:Velcro/EnergiaBooster
  STATUS Landed Earth
  BASE Doberai:6
  HEADING 0.00
  CONFIGURATION 0
  TGT_HEADING 90.0
  PRPLEVEL 0:0.5 1:0.5
  PRIMEBOOSTER 0
  CENTERTHRUST 1
  PARALLELBURN 1 Energia-M 4 0 1  1 0 0
  NAVFREQ 21 50
  XPDR 20
  TIPOFF 2
END
Booster2:Velcro/EnergiaBooster
  STATUS Landed Earth
  BASE Doberai:6
  HEADING 0.00
  CONFIGURATION 0
  TGT_HEADING 90.0
  PRPLEVEL 0:1.0 1:1.0
  PRIMEBOOSTER 0
  CENTERTHRUST 1
  PARALLELBURN 1 Energia-M 2.828 2.828 1  0.707 0.707 0
  NAVFREQ 21 50
  XPDR 20
  TIPOFF 2
END
Booster3:Velcro/EnergiaBooster
  STATUS Landed Earth
  BASE Doberai:6
  HEADING 0.00
  CONFIGURATION 0
  TGT_HEADING 90.0
  PRPLEVEL 0:1.0 1:1.0
  PRIMEBOOSTER 0
  CENTERTHRUST 1
  PARALLELBURN 1 Energia-M 0 4 1  0 1 0
  NAVFREQ 21 50
  XPDR 20
  TIPOFF 2
END
Booster4:Velcro/EnergiaBooster
  STATUS Landed Earth
  BASE Doberai:6
  HEADING 0.00
  CONFIGURATION 0
  TGT_HEADING 90.0
  PRPLEVEL 0:1.0 1:1.0
  PRIMEBOOSTER 0
  CENTERTHRUST 1
  PARALLELBURN 1 Energia-M -2.828 2.828 1  -0.707 0.707 0
  NAVFREQ 21 50
  XPDR 20
  TIPOFF 2
END
Booster5:Velcro/EnergiaBooster
  STATUS Landed Earth
  BASE Doberai:6
  HEADING 0.00
  CONFIGURATION 0
  TGT_HEADING 90.0
  PRPLEVEL 0:1.0 1:1.0
  PRIMEBOOSTER 0
  CENTERTHRUST 1
  PARALLELBURN 1 Energia-M -4 0 1  -1 0 0
  NAVFREQ 21 50
  XPDR 20
  TIPOFF 2
END
Booster6:Velcro/EnergiaBooster
  STATUS Landed Earth
  BASE Doberai:6
  HEADING 0.00
  CONFIGURATION 0
  TGT_HEADING 90.0
  PRPLEVEL 0:1.0 1:1.0
  PRIMEBOOSTER 0
  CENTERTHRUST 1
  PARALLELBURN 1 Energia-M -2.828 -2.828 1  -0.707 -0.707 0.0
  NAVFREQ 21 50
  XPDR 20
  TIPOFF 2
END
Booster7:Velcro/EnergiaBooster
  STATUS Landed Earth
  BASE Doberai:6
  HEADING 0.00
  CONFIGURATION 0
  TGT_HEADING 90.0
  PRPLEVEL 0:1.0 1:1.0
  PRIMEBOOSTER 0
  CENTERTHRUST 1
  PARALLELBURN 1 Energia-M 0 -4 1  00 -1 0
  NAVFREQ 21 50
  XPDR 20
  TIPOFF 2
END
Booster8:Velcro/EnergiaBooster
  STATUS Landed Earth
  BASE Doberai:6
  HEADING 0.00
  CONFIGURATION 0
  TGT_HEADING 90.0
  PRPLEVEL 0:1.0 1:1.0
  PRIMEBOOSTER 0
  CENTERTHRUST 1
  PARALLELBURN 1 Energia-M 2.828 -2.828 1  0.707 -0.707 0.0
  NAVFREQ 21 50
  XPDR 20
  TIPOFF 2
END
ACC1:Velcro/Shuttle_ACC
  STATUS Landed Earth
  BASE Doberai:6
  HEADING 0.00
  CONFIGURATION 0
  TGT_HEADING 90.0
  PRPLEVEL 0:1.0 1:1.0
  PRIMEBOOSTER 0
  CENTERTHRUST 1
  PARALLELBURN 0 Energia-M 0 6.5 38  0 1 0.0
  Fairing 2 0.0 0.0 5.0 0.0
  PAYLOAD fairing1 Velcro/parts/EnergiaMFair_1 Velcro/parts/EnergiaMFair_1 0 0 7 1250 0 1 0.0
  PAYLOAD fairing2 Velcro/parts/EnergiaMFair_2 Velcro/parts/EnergiaMFair_2 0 0 7 1250 0 1 0.0
END
ACC2:Velcro/Shuttle_ACC
  STATUS Landed Earth
  BASE Doberai:6
  HEADING 0.00
  CONFIGURATION 0
  TGT_HEADING 90.0
  PRPLEVEL 0:1.0 1:1.0
  PRIMEBOOSTER 0
  CENTERTHRUST 1
  PARALLELBURN 0 Energia-M 0 -6.5 38  0 1 0.0
  Fairing 2 0.0 0.0 5.0 0.0
  PAYLOAD fairing3 Velcro/parts/EnergiaMFair_1 Velcro/parts/EnergiaMFair_1 0 0 7 1250 0 1 0.0
  PAYLOAD fairing4 Velcro/parts/EnergiaMFair_2 Velcro/parts/EnergiaMFair_2 0 0 7 1250 0 1 0.0
END
END_SHIPS


sputnik

Addon Developer
Addon Developer
Donator
Joined
Apr 3, 2008
Messages
424
Reaction score
0
Points
16
Location
Palmdale
Website
www.worldof2001.com
You probably have a little stage trying to turn a great big stack, and it's trying for 090, it's just not getting there.

Try setting them up with alternate headings. Try 270.0, for a start. You'll probably have better luck.


MetalheadOC

New member
Joined
Oct 23, 2011
Messages
16
Reaction score
0
Points
0
Location
South Whidbey, WA
You probably have a little stage trying to turn a great big stack, and it's trying for 090, it's just not getting there.

Try setting them up with alternate headings. Try 270.0, for a start. You'll probably have better luck.

Thank you, that worked nicely.

Sigh. Just when I think I'm getting it figured out. I'm trying to get that "Dome1" to sit "flat" on the stage, just rotate it 90* about the Z axis, and the trig has me stymied again. Lil' help please? :hailprobe:

Code:
Dome1:BCP01
  STATUS Orbiting Earth
  RPOS -1786799.05 -2531921.25 5566561.37
  RVEL -445.851 52.424 -119.326
  AROT -24.46 16.28 179.80
  VROT 0.09 -0.10 -0.00
  ATTACHED 3:0,TransStage
  AFCMODE 7
  NAVFREQ 0 0
END
TransStage:TransStage-L
  STATUS Landed Earth
  BASE Doberai:6
  AFCMODE 7
  PRPLEVEL 0:0.999889
  THLEVEL 7:0.003136 8:0.003136 9:0.003492 10:0.003492 15:0.000006 16:0.000006
  NAVFREQ 0 0
  CONFIGURATION 0
  PRIMEBOOSTER 1
  CENTERTHRUST 0
  COUNTINGDOWN 1
  PADBIAS 1.000000
  TGT_HEADING 90.000000
  SERIESBURN 0 Dome1 0.0000 0.0000 -2.0000 0.0000 0.0000 -1.0000 0.0000 1.0000 0.0000
END


N_Molson

Addon Developer
Addon Developer
Donator
Joined
Mar 5, 2010
Messages
7,640
Reaction score
800
Points
188
Location
Toulouse
Vector problem : the cross product of those two vectors _V(0,0,-1) and _V(0,1,0) isn't equal to _V(0,0,0). I think.

SERIESBURN 0 Dome1 0.0000 0.0000 -2.0000 0.0000 0.0000 -1.0000 0.0000 1.0000 0.0000

Here the result is _V(1,0,0). Try values that give you _V(0,0,0).

Last edited:

sputnik

Addon Developer
Addon Developer
Donator
Joined
Apr 3, 2008
Messages
424
Reaction score
0
Points
16
Location
Palmdale
Website
www.worldof2001.com
Nah, that's easy. You need it to say:

SERIESBURN 0 Dome1 0.0000 0.0000 -2.0000 0.0000 0.0000 -1.0000 1.0000 0.0000 0.0000

No trig involved. You just needed to tell it, instead of head-up being out the +Y direction (last three numbers _V(0, 1, 0)) they should be 90 degrees off that, head-up being +X direction such as _V(1, 0, 0). -1 would work as well.

But what's that
ATTACHED 3:0,TransStage
doing in the Dome definition? That shouldn't be there, ever, and will certainly cause errors. Velcro Rockets does use attachments, but it has to make them itself, and it's supposed to break them before quicksaving. If it starts the scenario already attached, confusion will ensue.


MetalheadOC

New member
Joined
Oct 23, 2011
Messages
16
Reaction score
0
Points
0
Location
South Whidbey, WA
Nah, that's easy. You need it to say:

SERIESBURN 0 Dome1 0.0000 0.0000 -2.0000 0.0000 0.0000 -1.0000 1.0000 0.0000 0.0000

No trig involved. You just needed to tell it, instead of head-up being out the +Y direction (last three numbers _V(0, 1, 0)) they should be 90 degrees off that, head-up being +X direction such as _V(1, 0, 0). -1 would work as well.

But what's that
ATTACHED 3:0,TransStage
doing in the Dome definition? That shouldn't be there, ever, and will certainly cause errors. Velcro Rockets does use attachments, but it has to make them itself, and it's supposed to break them before quicksaving. If it starts the scenario already attached, confusion will ensue.

That seems to be coming from Orbiter if I save the .scn in-sim. Popped up in another .scn too, but doesn't seem to be causing any trouble there.

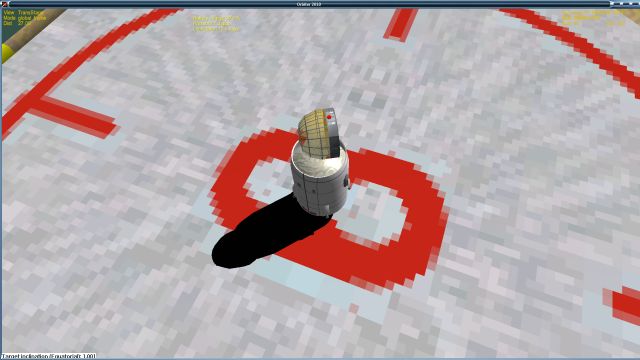

Rotation still not right here. Tried 1 & -1 in both the first & second positions of the last 3 digits, it just rotates the dome around the vertical. Lesse if I can get a screenshot working here, should be more obvious what I'm trying to do...


Attachments

  • aargh.jpg
    33.1 KB · Views: 378
Top
