Dear community,

This time, i'm realy asking something for myself. But it's not only for playing all alone, it could be part of a wider project which could become ( i think ) a cool ( and ambitious ) addon. I need one first vessel as described below, because i have to check things before going further on this idea. If it's strong enough, i'll open a dedicated thread. If you want to know more, please PM me.

What's needed ? A HUGE (at least 10 km wide) vessel, with no texture, no engine, no RCS, no special HUD, no animation, no dll, no docking port. It's a basic invisible tank. It's shape has no consequence, it can be a sphere or anything else. Perhaps it doesn't even need a mesh ? For now, a fuel tank is enough. It must be detected at least by Docking MFD, SyncOrbit MFD, AlignPlane MFD, IMFD, and Fuel Transfer MFD. That's for the very basic version. Reading this, you can understand how low is my knowledge about creating things for Orbiter :rolleyes:.

I don't know if Orbiter gives a mass/volume ratio for fuel, or if it's freely configurable. I'd like to have a very low mass for that vessel. Later, i'd like to fill this tank with something else, but that's another story. But now fuel is good enough, and the low mass is not fully requiered for the first testings i'll do.

Of course i'd be glad if someone could do such a vessel, but i'll need to learn how to do such a vessel by myself, because if things work as i expect, i'll need many vessels like that, with different volumes, mass. So, if someone's patient enough to explain me, or tell me where are the tutos, it'll be a good thing. Please be aware i'm not rich enough to buy a 3D software, and i don't plan to become a 3D developer.

Thanx for your attention. I know that it looks like a very stupid request, but the project behind is realy serious. Again, i won't speak about it on the forum before checking the idea's strength.

:cheers:


MaxBuzz

Well-known member
Joined
Sep 19, 2016
Messages
1,181
Reaction score
1,785
Points
128
Location
Kursk

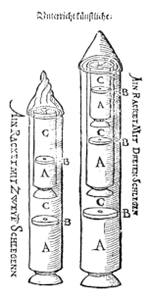

spaceship Conrad Haas (1551) and a rocket to it
