Old 11-22-2009, 02:09 AM   #1
SiberianTiger
News Sifter

SiberianTiger's Avatar

Videos Eutelsat W7 atop Proton-M/Briz-M on November 24, 2009





Launch site:
Baikonur
Launch date: November 24, 2009

The launch time is:
19 : 19 : 10 Baikonur 24.11.2009
17 : 19 : 10 Moscow Local 24.11.2009
14 : 19 : 10 UTC Nov 24, 2009
9 : 19 : 10 a.m. EST Nov 24, 2009

Payload: W7 Broadcasting Satellite

The W7 mission will be the 8th Proton launch of 2009 and the 349th Proton flight overall.

Spacecraft: W7



Manufacturer: Thales Alenia Space


The W7 is a new communications satellite of Eutelsat Communications built by Thales Alenia Space. The company's newest and most powerful spacecraft to date will be co-located with W4 at 36 degrees East to more than double resources at one of Eutelsat's fastest-growing neighborhoods, with more than 450 TV channels broadcast to those regions as of late 2009.

Through a configuration of up to 70 transponders connected to five high-performance fixed and steerable beams, W7 will provide coverage of Russia and sub-Saharan Africa for digital broadcasting services including pay-TV, and add significant resources and flexibility for expanding video and telecommunications markets in Europe, Africa, the Middle East and Central Asia.

In addition to video applications, W7 offers potential for data and voice solutions using small ground terminals, in particular for the oil and gas sector in Russia, Central Asia and West Africa.

The W7 satellite is based on the Spacebus 4000 C4 platform with a launch mass of approximately 5600 kg and has a 15-year life expectancy. W7 is the second satellite after W2A to be built by Thales for Eutelsat. The spacecraft will replace Eutelsat's SESAT 1 satellite, launched on a Proton in early 2000. It is expected to enter commercial service in January 2010.

W7's launch marks the latest step in Eutelsat's far-reaching investment program of new satellites designed to expand, renew and secure its in-orbit resources. Four further satellites will be orbited by the end of 2011 (W3B, KA-SAT, W3C and Atlantic Bird 7).

Key MarketsKey Services
- Europe- DTH video
- Russia- Voice/data networks
- Central Asia- Broadband applications
- Sub-Saharan Africa
- Middle East

W7 specifications

ParameterValue
ApplicationBroadcasting
OrbitGEO
Orbit Position36 W
OperatorEutelsat
CoverageEurope, Russia, North Africa, the Middle East, Central Asia
Prime ContractorThales Alenia Space
PlatformSpacebus 4000 C4
Design Lifetime15 years
Launch Mass5.6 tons
BandKu
Transponders70
Solar Array Power15.8 kW
Payload Power13.2 kW
Downlink Frequencies10.70-12.75 GHz

Expected Ku band coverage footprints for W7











Launcher: Proton-M with Briz-M upper stage



ParameterValue
Rocket FamilyProton
Designation8K82M
ClassHeavy
TypeExpendable
DesignerSalut Design Bureau
ManufacturerKhrunichev State Research and Production Space Center
Stages4
Height, mm42340
Diameter, mm7400
Launch Mass, kg700000

W7 Ascent Profile

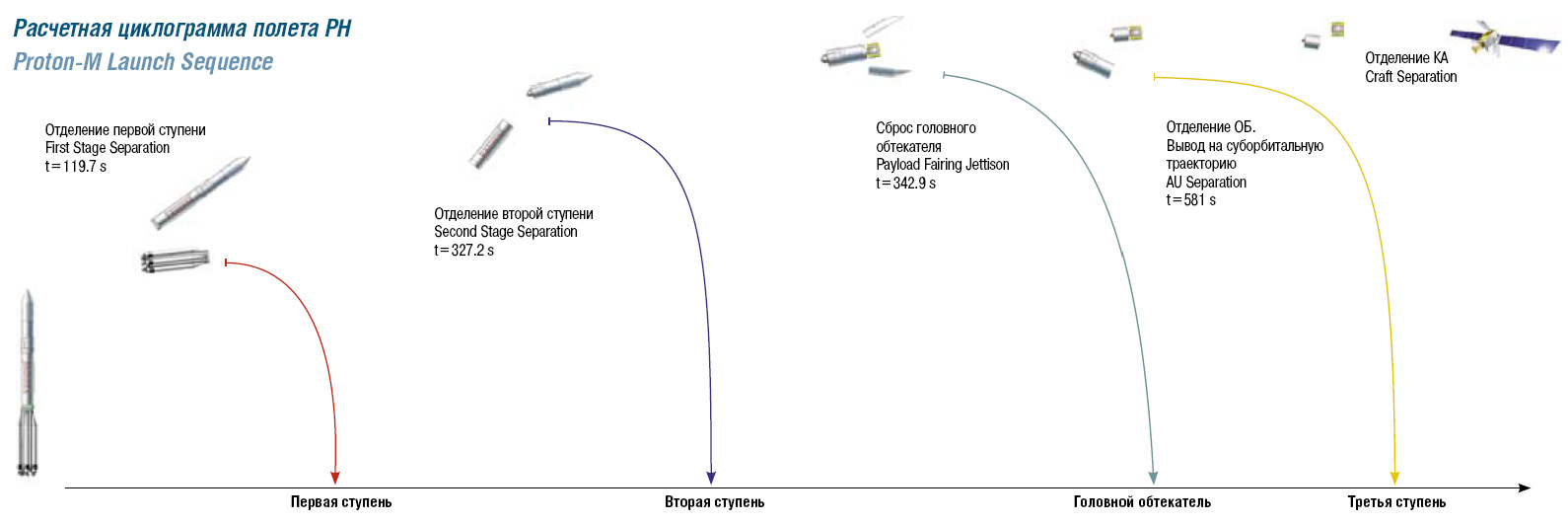

The Proton-M three stages place the ascent unit (AU), which consists of a Breeze-M upper stage, adapter system and W7, into a 51.5 inclination suborbital trajectory.

Proton-M powered flight lasts 581 seconds. The AU powered flight begins at the moment of the third stage separation.



Breeze-M Powered Flight

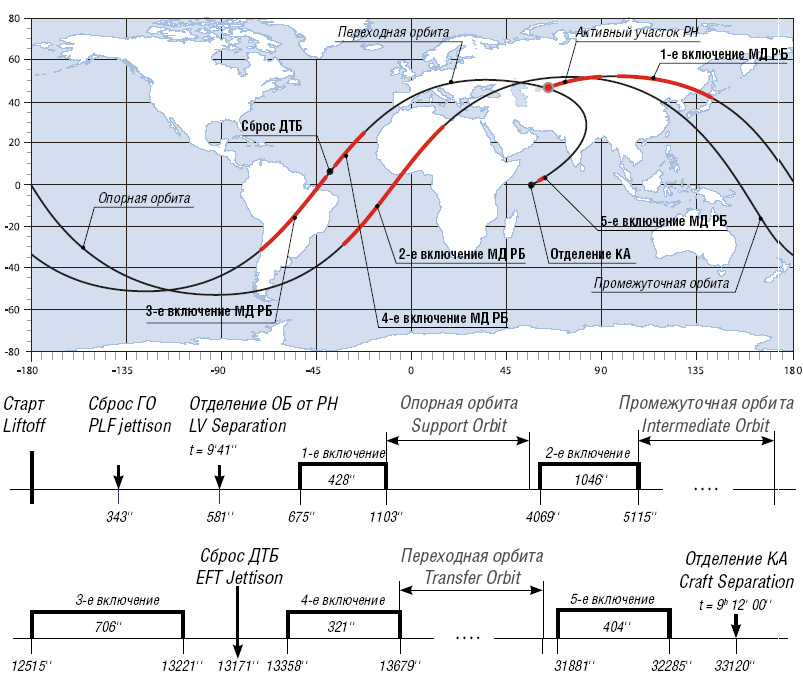

The upper stage follows a five-burn injection profile.

The Breeze-M powered flight lasts 33,120 seconds (9 hrs 12 min).





The vehicle's reliability statistics according to http://www.spacelaunchreport.com/reliability2009.txt:

Code:
================================================================
Vehicle     Successes/Tries Realzd Pred  Consc. Last     Dates
                             Rate  Rate* Succes Fail
================================================================
Proton-M/Briz-M  29    32    .91  .88     10    03/14/08 2001-
Weather forecast for Baikonur, Kazakhstan on November 24, 2009


Hi: 3C
Lo: 0C
Drizzle. There is a 10% chance of precipitation. Mostly cloudy. Cool. Temperature of 3C. Winds SSE 17km. Humidity will be 81% with a dewpoint of 0 and feels-like temperature of -1C.

Sunrise/Sunset and associated twilight times for Baikonur on Sunday, November 24, 2009

Times are local.
EventTime
Astronomical twilight begins06 : 13
Nautical twilight begins06 : 49
Civil twilight begins07 : 26
Sunrise07 : 57
Transit (sun is at its highest)14 : 33
Sunset19 : 09
Civil twilight ends19 : 40
Nautical twilight ends20 : 17
Astronomical twilight ends20 : 53

Watching the launch live

ILS broadcasts will begin
at 9 : 15 AM EST Nov 23rd / 2 : 15 PM GMT Nov 23rd / 17 : 15 Moscow
References
http://www.federalspace.ru
http://tvroscosmos.ru
http://www.ilslaunch.com
http://www.khrunichev.ru
http://coopi.khrunichev.ru
http://www.eutelsat.com
http://www.spacelaunchreport.com
http://weatherbug.com
http://www.good-stuff.co.uk/suntimes/sunmap.php

Last edited by SiberianTiger; 11-28-2009 at 09:18 PM. Reason: Launched
SiberianTiger is offline   Reply With Quote
Old 11-22-2009, 02:11 AM   #2
SiberianTiger
News Sifter

SiberianTiger's Avatar

You Tube

Launch preparations history in pictures















Rolling out and erection on 20.11.2009













Launch preparations history in videos

The W7 upper composite's transporting for integration


Rolling out and erection on the pad - watch and get rolled over by the Proton!

Last edited by SiberianTiger; 11-22-2009 at 02:21 AM.
SiberianTiger is offline   Reply With Quote
Old 11-23-2009, 05:38 PM   #3
SiberianTiger
News Sifter

SiberianTiger's Avatar

Default

According to http://www.itar-tass.com/level2.html...8740&PageNum=0,
the launch has been postponed for 1 day till November, 24. The cause for the delay is not specified yet.

---------- Post added at 12:37 ---------- Previous post was at 10:29 ----------

The new launch time is:
19 : 19 : 10 Baikonur 24.11.2009
17 : 19 : 10 Moscow Local 24.11.2009
14 : 19 : 10 UTC Nov 24, 2009
9 : 19 : 10 a.m. EST Nov 24, 2009

---------- Post added at 13:20 ---------- Previous post was at 12:37 ----------

Attention, Kazakh high hat downrange!

Quote:
23-11-2009 Information on W7 launch for Media.

The launch of communication spacecraft Eutelsat W7 from Baikonur which was planned on today at 17.19 Moscow time, is postponed due to circumstances beyond Russian responsibility. According to the Russian Federal Space Agency, all documents were submitted to Kazcosmos approval in advance and corresponding prelaunch arrangements were undertaken. The areas where Proton-M stages were to collapse were repeatedly coordinated with Kazcosmos.

It is not the first case when a spacecraft lift-off is under the threat of frustration due to circumstances beyond Russian responsibility.

Roscosmos Press Office


---------- Post added at 20:37 ---------- Previous post was at 13:20 ----------

http://www.kt.kz/index.php?lang=rus&...ter=1153503740

Summary:

Roscosmos calls the delay with W7 satellite launch a misapprehension caused by delay on getting a launch clearance from Kazakhstan. Roscosmos officials confirm all the necessary documents had been agreed upon and hope that it's going to be dissolved as soon as possible and the launch will be commenced on the backup date November 24, 2009.

On other hand, Kazcosmos informs that W7 launch has not been provided for by this year's agreed launch schedule. According to them, Roscosmos submitted the launch permission request to Kazakh Prime Minister's Chancellary as late as on September 26, 2009. To quote Kazcosmos' message, "Russian side was duly informed that decision taking process within Government of Kazakhstan takes considerable time and is not over yet at the moment".

---------- Post added at 20:38 ---------- Previous post was at 20:37 ----------

Kazcosmos website link with the official message:
http://www.kazcosmos.kz/?m=news&lng=...&act=show_news
SiberianTiger is offline   Reply With Quote
Old 11-23-2009, 05:52 PM   #4
Star Voyager
Failed Addon Developer

Star Voyager's Avatar
Default

Political friction delayed the launch ? That's the first time I've ever heard about something like that.
Star Voyager is offline   Reply With Quote
Old 11-24-2009, 06:43 PM   #5
SiberianTiger
News Sifter

SiberianTiger's Avatar

Default

Quote:
24-11-2007 Launch of Eutelsat W7 is planned for today

Today at Baikonur, State Commission have finished its session during which the questions of launch readiness of Proton-M vehicle with W7 satellite were considered. The State Commission members have issued a clearance for fueling the vehicle and proceeding with launch operations.

The launch is planned for today, November 24, at 17:19 Moscow Time.

Press Office of Khrunichev Space Centre
It's not quite clear yet, what exactly is this: "Kazakhstan reasoned", "Kazakhstan ignored" or "An expedite money transfer is on its way". We have to wait and see.

---------- Post added at 16:20 ---------- Previous post was at 11:57 ----------

Live coverage has begun at Khrunichev's website:
http://coopi.khrunichev.ru/main.php?id=201
Login: W7
Password: LaunchW7

Agree to install Axis Software's software.

Darn, I'm blocked behind a firewall.

---------- Post added at 16:26 ---------- Previous post was at 16:20 ----------

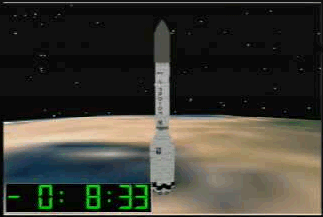

1 hour stand-by

---------- Post added at 16:37 ---------- Previous post was at 16:26 ----------

mms://www.space-center.ru/video stream is on air

---------- Post added at 17:09 ---------- Previous post was at 16:37 ----------

Swithching spacecraft to onboard power

---------- Post added at 17:13 ---------- Previous post was at 17:09 ----------



---------- Post added at 17:18 ---------- Previous post was at 17:13 ----------

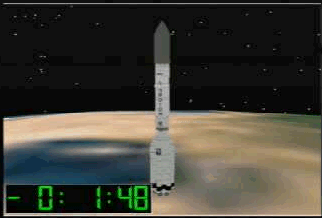

1 minute standby


---------- Post added at 17:18 ---------- Previous post was at 17:18 ----------

Lift-off!

---------- Post added at 17:19 ---------- Previous post was at 17:18 ----------



---------- Post added at 17:20 ---------- Previous post was at 17:19 ----------

2nd stage ignition, 1st stage separation

---------- Post added at 17:21 ---------- Previous post was at 17:20 ----------

(sorry, Nursultan...)

---------- Post added at 17:23 ---------- Previous post was at 17:21 ----------

280 sec, all is okay

---------- Post added at 17:24 ---------- Previous post was at 17:23 ----------

2nd stage separation, 3rd stage ignition, payload fairing separation

---------- Post added at 17:25 ---------- Previous post was at 17:24 ----------

470 sec, pitch, roll, yaw, stabilization nominal, etc.

---------- Post added at 17:28 ---------- Previous post was at 17:25 ----------

MECO on the 3rd stage; 3rd stage separation


---------- Post added at 17:36 ---------- Previous post was at 17:28 ----------

Suborbital trajectory acquired

---------- Post added at 17:37 ---------- Previous post was at 17:36 ----------

Over Japan now


---------- Post added at 17:38 ---------- Previous post was at 17:37 ----------

1st Briz-M burn is under way

---------- Post added at 17:43 ---------- Previous post was at 17:38 ----------

Good 1st burn completion is reported.

---------- Post added at 18:26 ---------- Previous post was at 17:43 ----------

Initiating the 2nd burn over the Southern Atlantic


---------- Post added at 18:43 ---------- Previous post was at 18:26 ----------

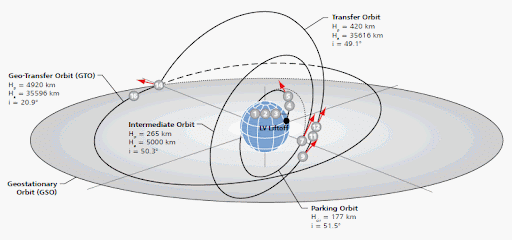

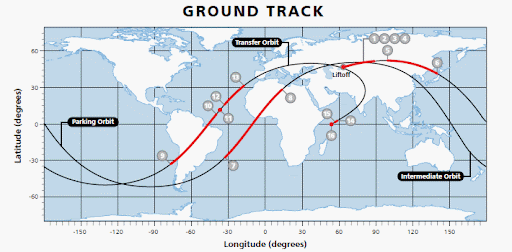

Briz-M flight plan Reference data posting







Mission time:
*Click here to restart the timer*


---------- Post added at 18:47 ---------- Previous post was at 18:43 ----------

2nd upper stage burn (longest of all) is complete, pushing the payload stack from the Parking to Intermediate Orbit. The 3rd burn will be carried out at 03:28:35 Mission Time.

---------- Post added at 18:56 ---------- Previous post was at 18:47 ----------

ILS launch video report grab


---------- Post added at 21:43 ---------- Previous post was at 18:56 ----------

3rd burn, APT jettison and 4th burn are OK.

Last edited by SiberianTiger; 11-24-2009 at 02:41 PM.
SiberianTiger is offline   Reply With Quote
Thanked by:
Old 11-25-2009, 09:42 AM   #6
SiberianTiger
News Sifter

SiberianTiger's Avatar

Default

Inclination change burn 5 and spacecraft separation are confirmed!

The final achieved target orbit's assessment
Parameter (units)Parameter nameValueNominal ValueOff nominal by
T (hrs : min : sec)Occulating Period11 : 59 : 26.612 : 1 : 1.70 : 1 : 35.1
a (km)Major half-axis26596.5226635.5639.04
eEccentricity0.57720600.57586780.0013382
iInclination20 51' 48"20 54' 1"0 2' 13"
Hp (km)Perigee Altitude4866.714918.8652.15
Ha (km)Apogee Altitude35570.0535595.9925.93

http://www.ilslaunch.com/w7-mission-successful/

Quote:
W7 Mission Successful!

Posted by ILS Communications Team, 6:30 p.m. EST on 24 November 2009

We have had a successful mission with the Proton M Breeze M rocket, carrying the W7 satellite built by Thales Alenia Space for Eutelsat. We have had confirmation that the satellite separated from the vehicle on schedule at 6:30 p.m. EST, or 04:34 GMT, 9 hours and 12 minutes after liftoff.

Everything occurred as planned with ignition, shutdown and separation of the Protons first three stages. Then the Breeze M upper stage with the satellite continued the mission, igniting five times, and then releasing the satellite into transfer orbit.
http://www.eutelsat.com/home/w7.pdf

Quote:
Paris, 25 November 2009

The W7 satellite of Eutelsat Communications (Euronext Paris: ETL) has been successfully lofted into orbit by a Proton Breeze M rocket supplied by ILS. Lift-off of Eutelsats 5.6 tonne communications satellite took place on Tuesday 24 November at 14.19 GMT (15.19 CET). After a 9-hour 12-minute flight, the launcher released W7 into geosynchronous transfer orbit
at 23.31 GMT (00.31 CET).

Commenting after successful spacecraft separation, Eutelsat CEO, Michel de Rosen said: We are delighted to announce that our W7 satellite is on its way to 36 East, and we thank ILS and Khrunichev for responding to our requirements for quality, efficient and timely service. This new satellite will be a key pillar for our business development at a well established neighbourhood, addressing dynamic markets with clear potential for sustained growth. W7 will support expansion of pay-TV platforms in Russia and across Africa. It will also give us headroom to expand telecoms and data activity in a vast region embracing Europe, the Middle East, Africa and Central Asia.

With three new satellites having already entered into commercial service in 2009 - HOT BIRD 9, ATLANTIC BIRD 4A and W2A - todays launch also represents a new step forward in Eutelsats significant in-orbit expansion programme. Four additional satellites will follow W7 into orbit by the end of 2011 to equip us with the resources, flexibility and reach we need to capture further business opportunities in video, telecom and broadband markets.

Based on the Spacebus 4000C4 design, W7 was built for Eutelsat by Thales Alenia Space. The satellites apogee motor will be fired three times over the coming five days to circularise its orbit and solar panels and antennas will be fully deployed by the beginning of next week. After an extensive round of in-orbit tests, the satellite will be commercially available at 36 degrees East in early January 2010.
Launch Pictures









Mission Screenshots from Khrunichev COOPI

1st Stage separation


Disposal fields area of the 1st stage near Dzhezkazgan


2nd Stage separation


Upper composite separation


End of booster phase


3rd Ignition of Briz-M


External tank's jetisson


The final burn


Spacecraft separation


Briz-M's disposal burn


Message of Press Office of Space Agency of Kazakhstan

http://www.kazcosmos.kz/?m=news&lng=...&act=show_news

Quote:
24.11.2009 Russian Proton-M rocket launch

Government of Republic of Kazakhstan has approved the change into Plan of Space Launches from Baikonur Cosmodrome, including the launch of Russian Proton-M launch vehicle with European W7 satellite on board. The launch was commenced on November 24, 2009 at 17 : 19 Moscow Time.

The postponement of the launch from 23rd to 24th (the backup date) was caused by the unscheduled nature of this launch. It was not provided for by the earlier agreed upon plan of Space Launched for year 2009 and was envisaged by Republic of Kazakhstan exclusively to satisfy the Russian side's request.

[...]

National Space Agency of Kazakhstan believes that many recent positive decisions of similar nature in favour of Russia proves adherence of Kazakhstan to the principles of Kazakh-Russian strategic partnership.


---------- Post added at 12:42 ---------- Previous post was at 08:53 ----------

The last update here, Roscosmos official launch video
SiberianTiger is offline   Reply With Quote
Thanked by:
Reply

  Orbiter-Forum > Far Side of the Moon > Spaceflight News


Thread Tools

Posting Rules
BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts
Forum Jump


All times are GMT. The time now is 07:47 PM.

Quick Links Need Help?


About Us | Rules & Guidelines | TOS Policy | Privacy Policy

Orbiter-Forum is hosted at Orbithangar.com
Powered by vBulletin® Version 3.8.6
Copyright ©2000 - 2019, Jelsoft Enterprises Ltd.
Copyright 2007 - 2017, Orbiter-Forum.com. All rights reserved.
